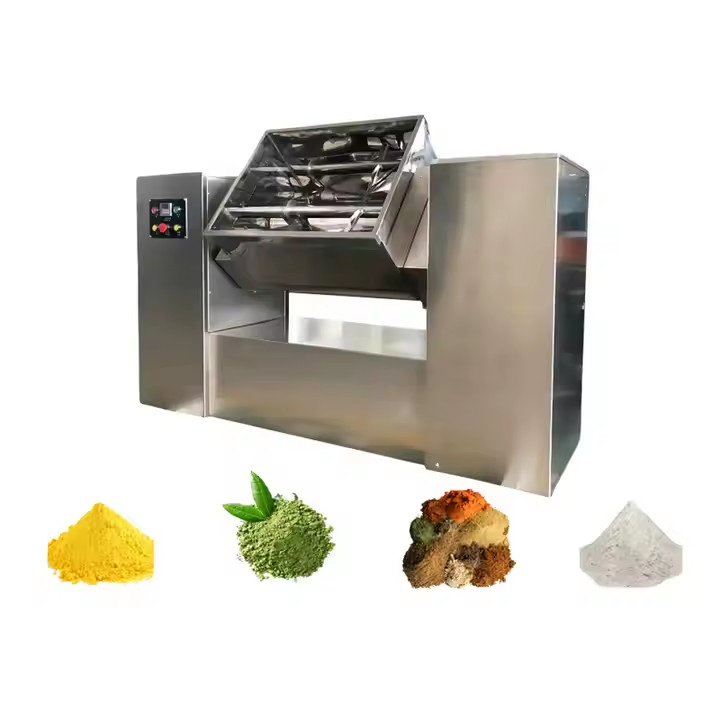

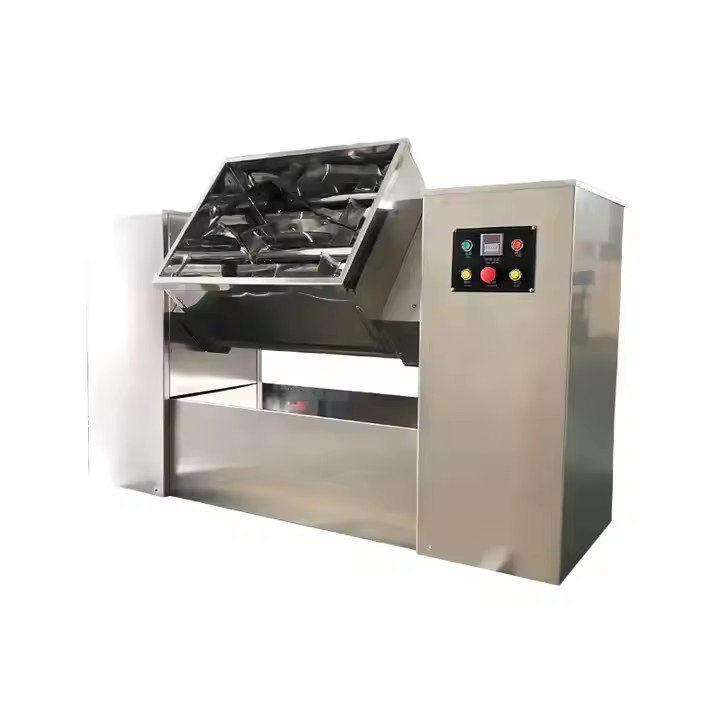

Stainless Steel Ribbon Blender for Dry Powder, Flour, and Herbal Granules Mixing

1 / 5

Stainless Steel Ribbon Blender for Dry Powder, Flour, and Herbal Granules Mixing

Customization:	Available
Additional Capabilities:	Drying, Granulating
After-sales Service:	Engineers Available to Service Machinery Overseas, Online Support, video Technical Support

Send Inquiry

Product Description

📋

Basic Specifications

Application

Granules, Powder

Certification

CE, ISO

Control System

Button Control

Heating Method

Electric Heating

Main Material

Carbon Steel, Cast Iron, Stainless Steel

Mixing Capacity

50L-5000L

Speed Control

Variable Speed

Stirring Type

Forced Paddle

Material

SUS304, SUS304L, SUS316, SUS316L

Product Name

Trough Type Blender

💡

Product Overview

The Z blade mixer is used for mixing wet powders, pastes, and slurries in food and chemical industries. It includes a trough-shaped bowl, sigma blades, and motors for driving and tilting. The Z blades ensure uniform mixing, and the bowl tilts for easy discharge. A heavy-duty version is available for high-viscosity products.

⚙️

Working Principle

Z arm type paddle is rotated through mechanical driving, which pushes the material turn repeatedly and mix uniformly.
Operated with electrical control, mixing time can be set to realize automatic stop and electric drive to discharge, ensuring high homogeneous mixing for each batch.

📊

Main Technology Parameters

Model	VBT-50	VBT-100	VBT-200	VBT-300	VBT-400	VBT-500
Total volume (L)	50	100	200	300	400	500
Mixing Speed (r/min)	24
Rotation Angle	< 105°
Mixing Motor (kw)	1.5	2.2	4	5.5	5.5	7.5
Pouring Motor (kw)	0.37	0.55	0.75	1.1	1.1	1.5

🌟

Technical Advantages

1. Robust, compact design with minimal maintenance.

2. Made of SUS304 or SUS316, mirror polished to GMP standards.

3. Special drive shaft sealing ensures contamination-free products.

4. Less than 3mm gap between sigma blade and vessel wall.

5. High-efficiency mixing with no dead corners.

6. Optional heating jacket for steam, hot water, or hot oil.

📸

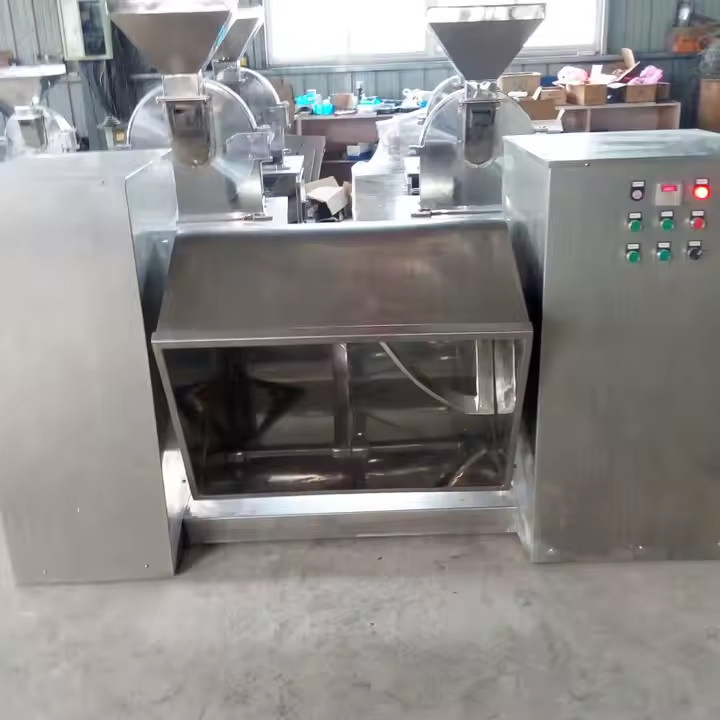

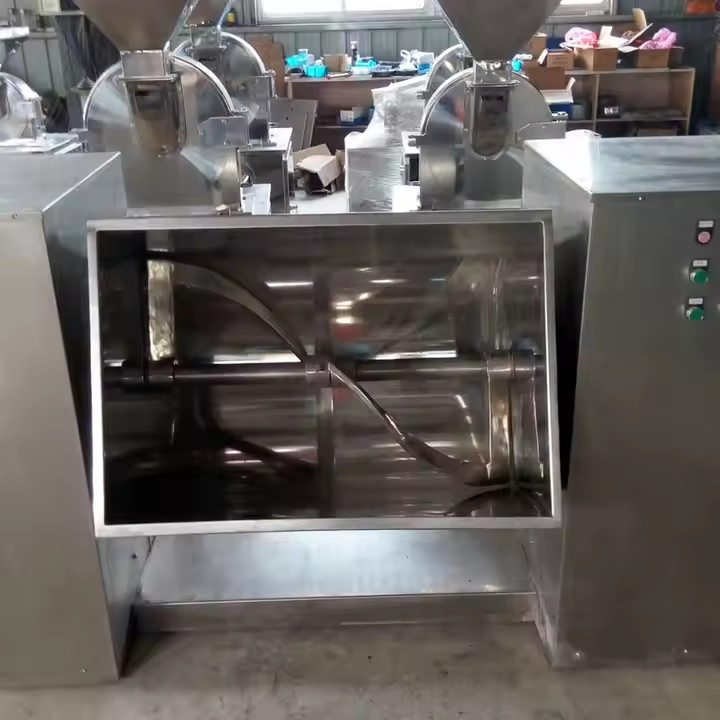

Product Showcase

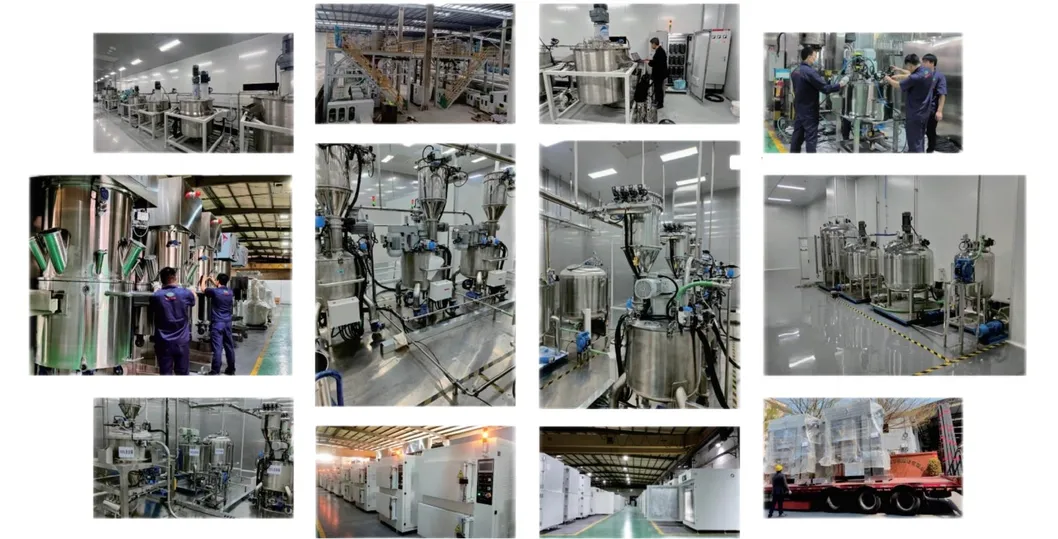

Customer Case Study

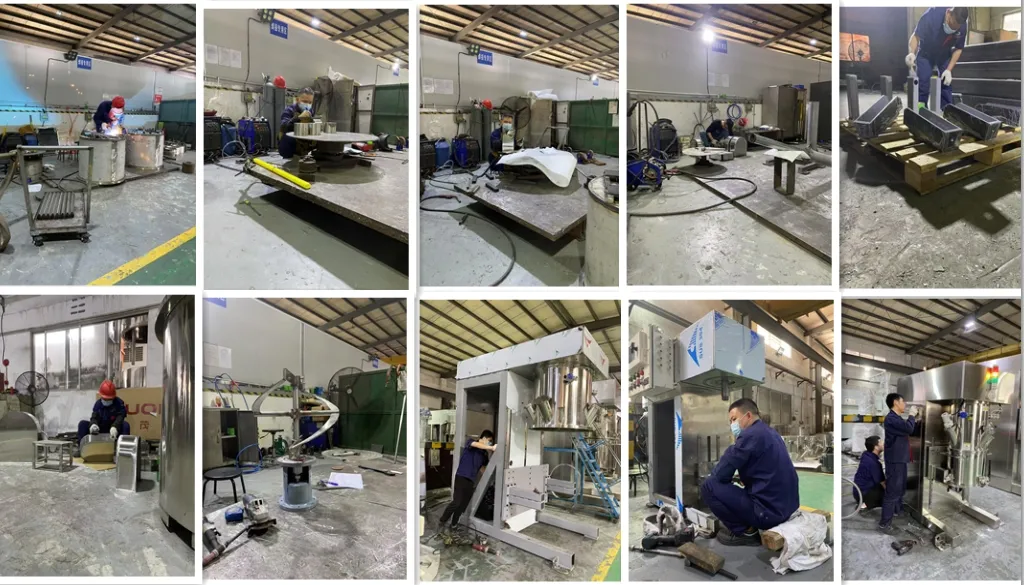

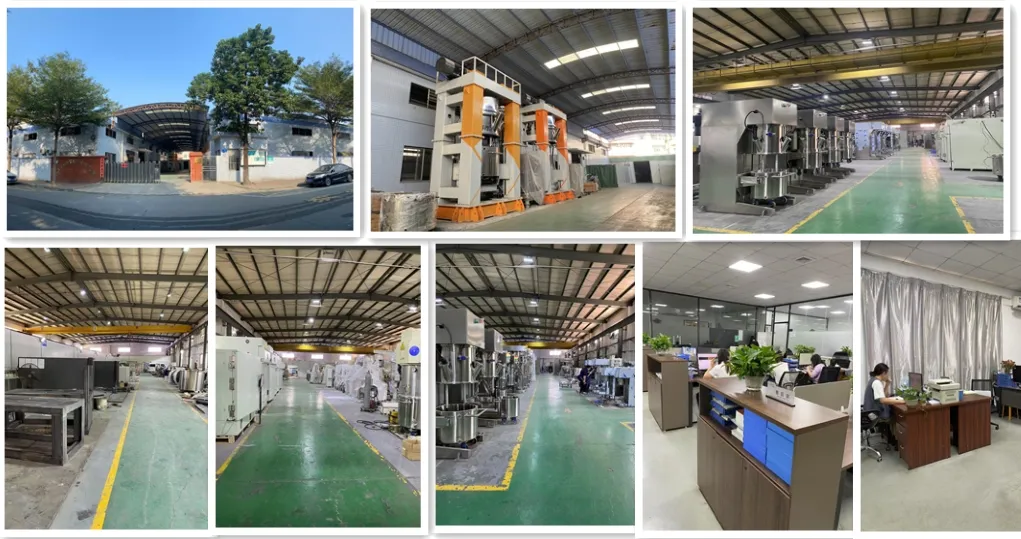

Factory Tour

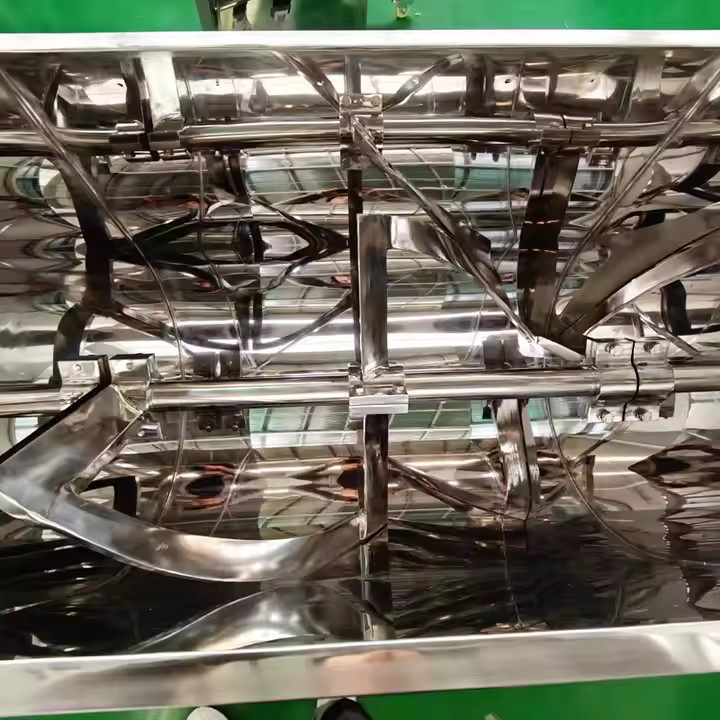

Craftsmanship Details

Packing and Shipping

❓

Frequently Asked Questions

What types of materials are your mixers suitable for?

Our mixers handle a wide range of viscous materials including lithium battery slurry, chemical pastes, adhesives (epoxy, silicone), coatings, inks, and cosmetic creams.

Can your mixers remove air bubbles during processing?

Yes. Most of our mixing systems support vacuum operation, which effectively removes microbubbles and trapped air, critical for high-performance battery slurry and coatings.

What heating methods do your systems support?

We offer multiple options: thermal oil jacket heating, electric heating rods, steam heating, and hot water circulation heating, all with dual temperature monitoring.

Is it easy to clean the machine when switching materials?

Yes. Internal surfaces are mirror-polished to reduce residue. Tanks include sampling ports and optional CIP (clean-in-place) spray heads for fast batch turnaround.

Can I adjust the mixing speed and process parameters?

Absolutely. Mixers are equipped with frequency inverter controls for independent speed adjustment. PLC + HMI automation is also available for data tracking.

Do you support customization of tank volume?

Yes, we offer full customization of tank volume, structure, feeding ports, vacuum/heating systems, and discharge methods based on your specific application.
