Basic Specifications
Application
Block Materials
Fuel
Customizable (Electric/Steam/Gas)
Heating Method
Dissemination
Main Material
304/316L Stainless Steel
Product Overview

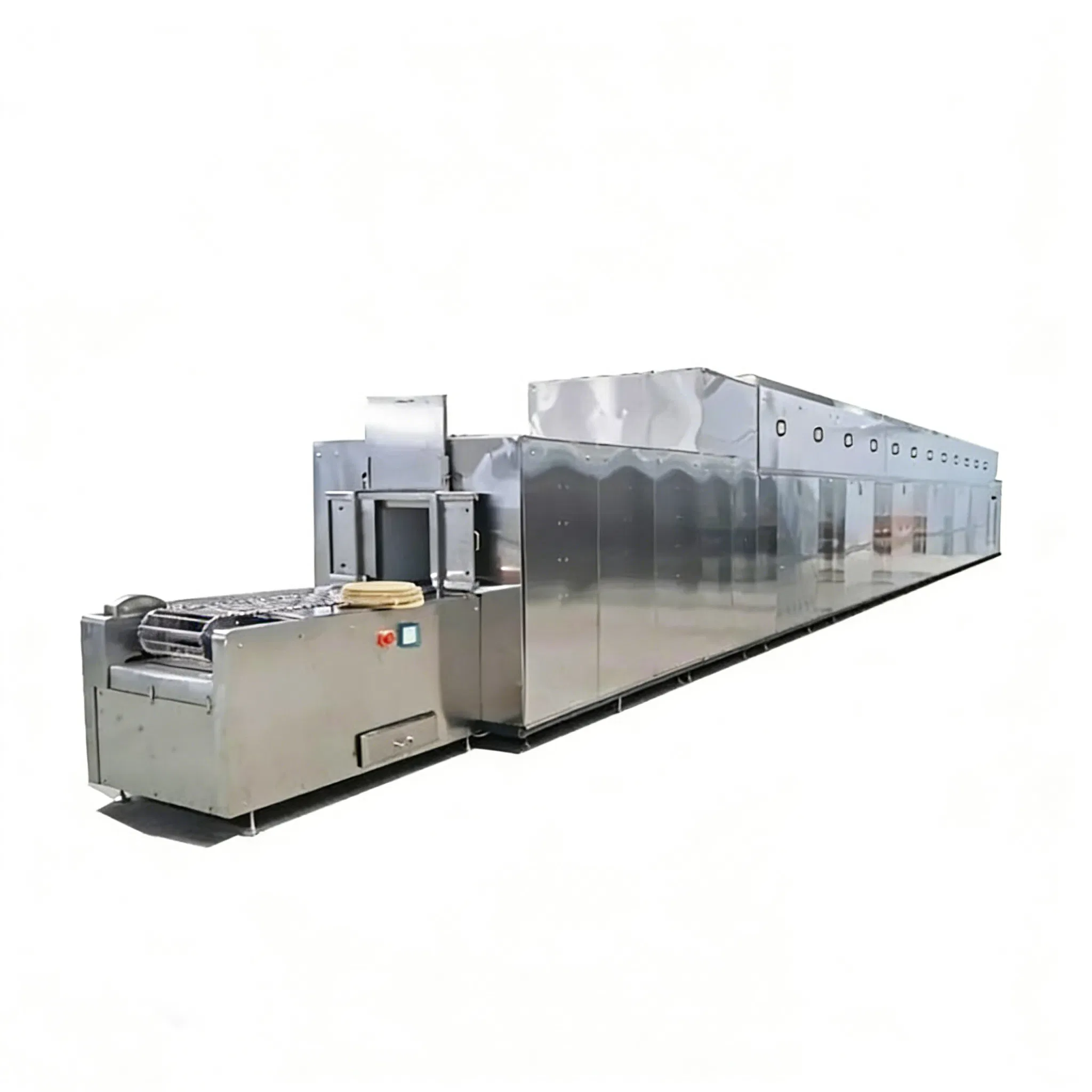

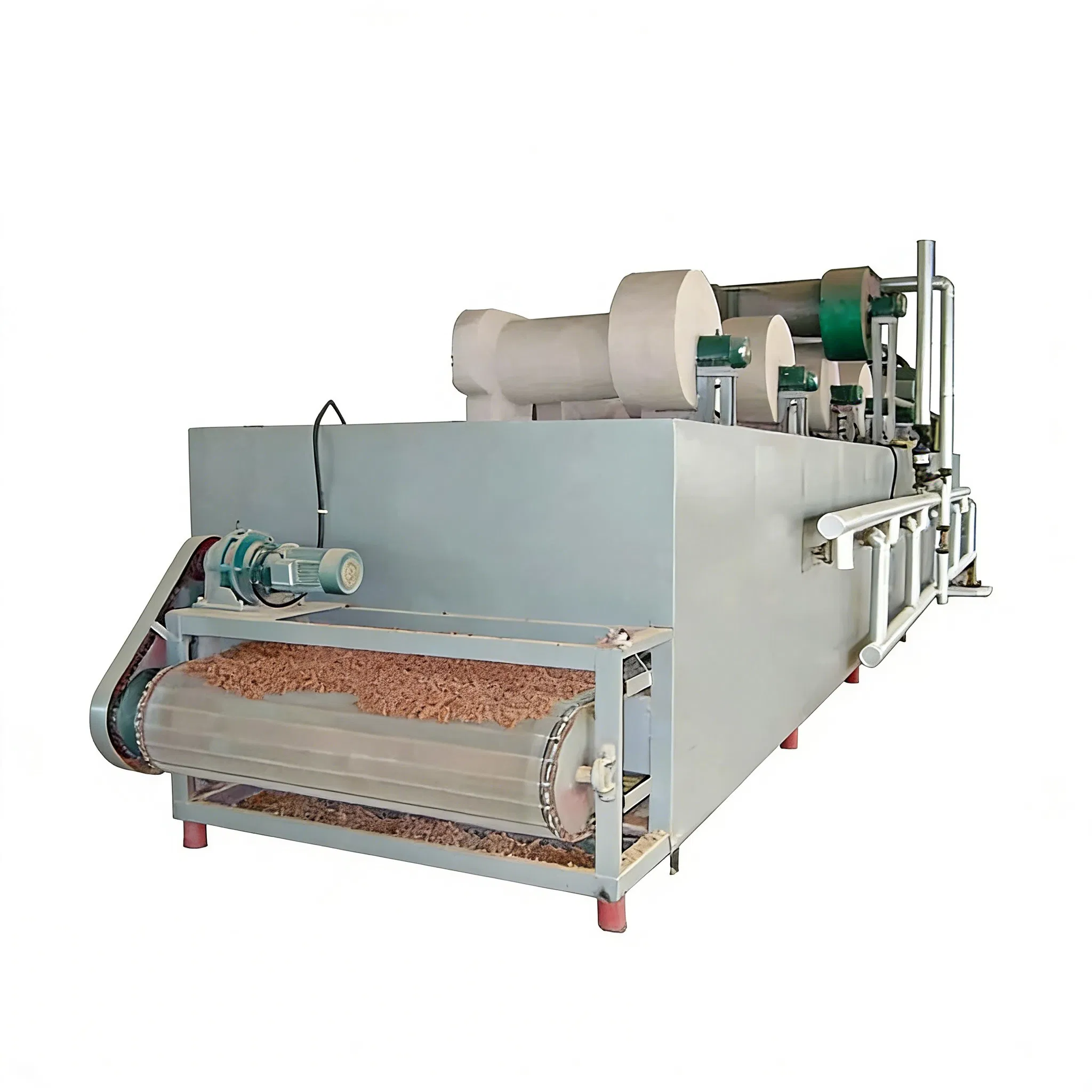

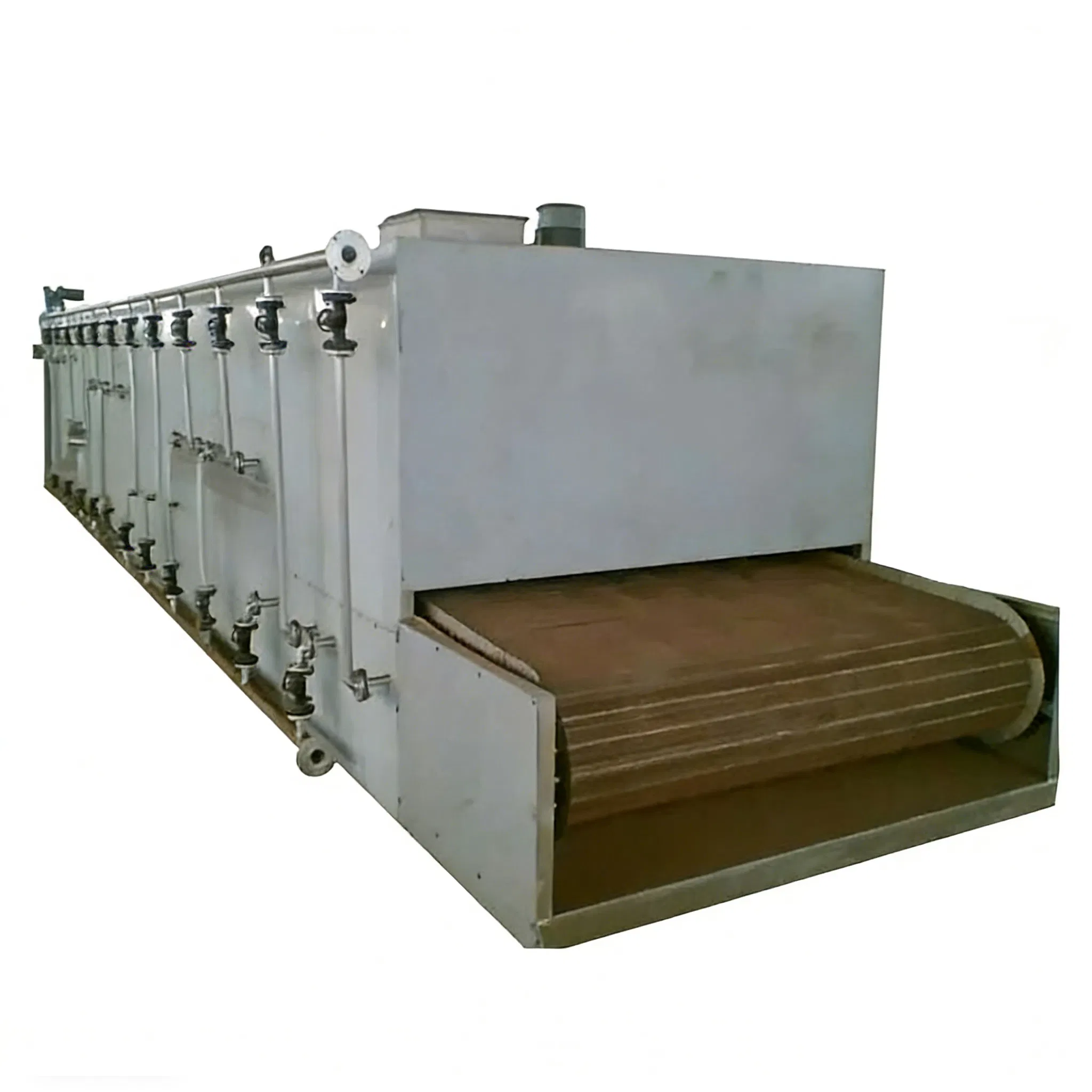

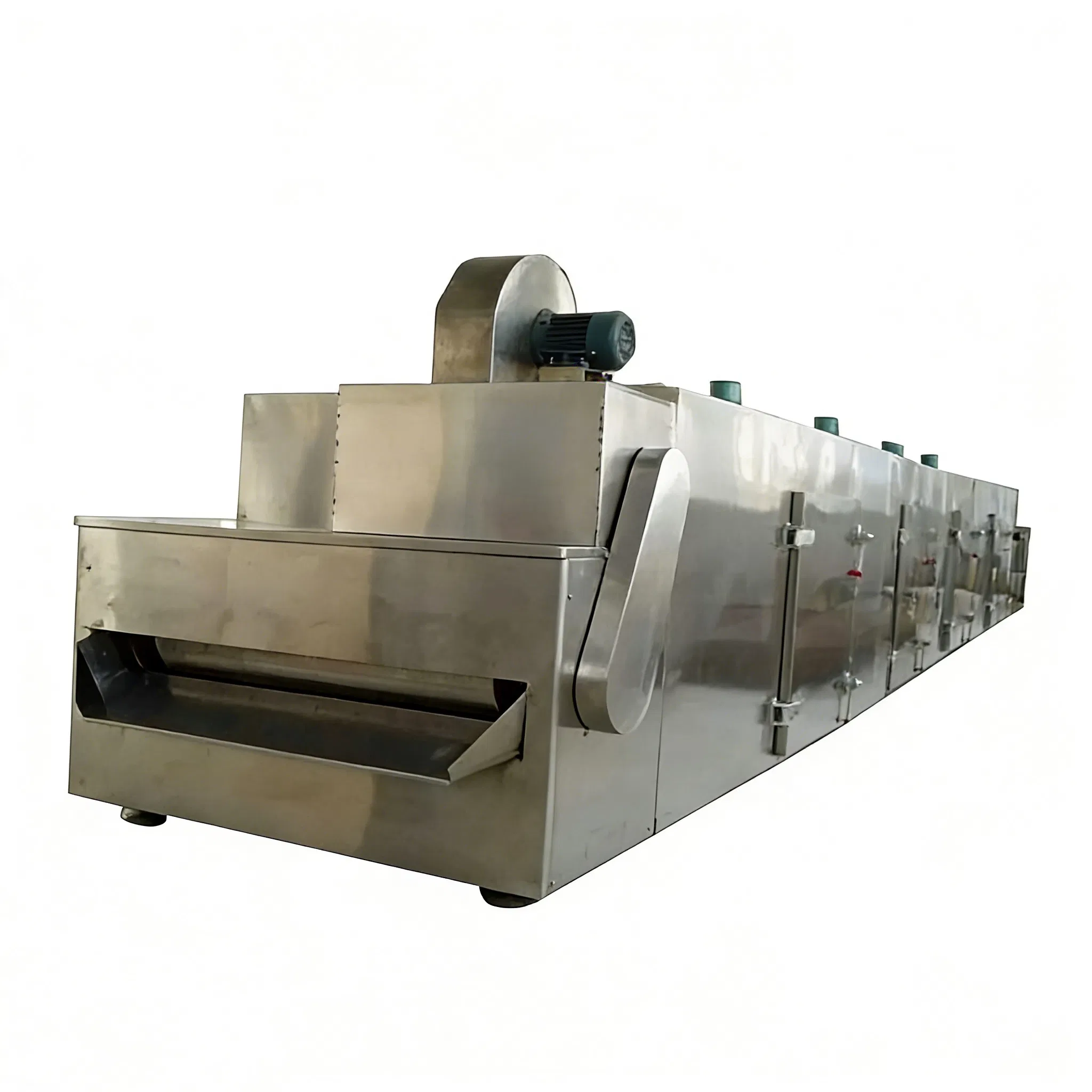

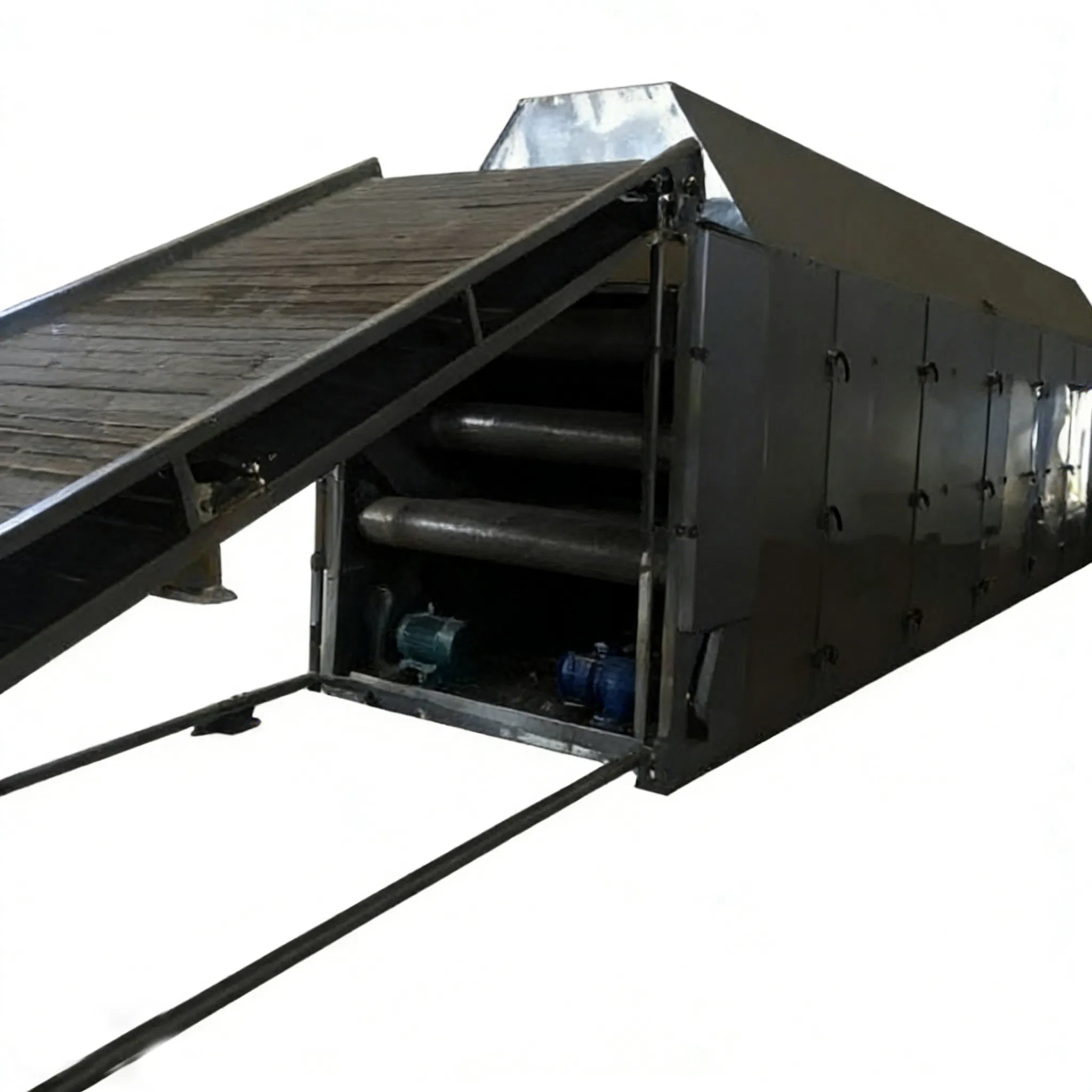

The mesh belt dryer is a continuous batch drying equipment. Its core working principle is to smoothly convey materials through the drying chamber using a conveyor mesh belt. The hot air circulation system achieves full contact between heat and materials, quickly removing moisture. This equipment features a modular design consisting of a feeding system, conveying belt, drying units, and control systems. It is highly efficient for modern industrial production, retaining material quality such as nutritional components, color, and shape.
Core Advantages
⚙
High Automation: Continuous conveying design ensures 24-hour uninterrupted operation. Processing capacity is increased by over 30% compared to intermittent dryers.
♨
Uniform Drying: Optimized hot air circulation and air guide plates prevent local overheating, ensuring consistent quality for each batch.
☘
Energy Efficient: High-efficiency insulation with heat loss below 5%. Optional waste heat recovery increases thermal efficiency to over 85%.
Technical Specifications
| Model |
Belt Width (mm) |
Drying Length (m) |
Speed (m/min) |
Temp (℃) |
Capacity (kg/h) |
Power (kW) |
Dimensions (m) |
| WD-1000 |
1000 |
8 |
0.5-3 |
50-180 |
50-150 |
30-45 |
9.5×1.8×2.2 |
| WD-1500 |
1500 |
10 |
0.5-3 |
50-180 |
150-300 |
45-60 |
11.5×2.3×2.2 |
| WD-2000 |
2000 |
12 |
0.5-4 |
50-200 |
300-500 |
60-80 |
13.5×2.8×2.5 |
| WD-3000 |
3000 |
15 |
0.5-4 |
50-200 |
500-800 |
80-120 |
16.5×3.8×2.5 |
Industry Applications
Food Industry: Drying fruits, vegetables, grains, and snack foods to extend shelf life.
Pharmaceuticals: Processing Chinese medicinal materials and granules under GMP standards.
Chemicals: Handling plastic particles, resins, pigments, and catalysts.
Building Materials: Used for ceramic bodies, gypsum boards, and insulation materials.
Service & Support
• Warranty: 12 months or 2,000 operating hours.
• Extended Support: Optional coverage up to 36 months.
• Global Assistance: 24/7 technical support and spare parts supply.
• Training: Comprehensive on-site or remote operation training.
Frequently Asked Questions
Q1: What is the typical lead time for a mesh belt dryer?
Standard models ship in 15–30 days, while fully customized units typically require 30–45 days depending on the configuration.
Q2: Can the drying temperature and belt speed be adjusted?
Yes, both parameters are steplessly adjustable through the control system to suit different material moisture levels and heat sensitivities.
Q3: What materials are used in the construction of the equipment?
All parts in contact with materials are made of 304 stainless steel. 316L or titanium alloys are available for highly corrosive chemical applications.
Q4: Is the equipment energy-efficient for large-scale production?
Absolutely. Our dryers feature high-efficiency insulation and optional waste heat recovery systems, significantly reducing operating costs.
Q5: Do you provide support for installation and operation?
Yes, we provide complete technical documentation for export and offer on-site or remote training for your operation and maintenance teams.
Q6: What types of materials can this dryer handle?
It is suitable for granular, sheet, strip, and some paste-form materials across food, pharmaceutical, and chemical industries.
