| Model NO. | Customizable | Type | Mesh Belt Dryer |
|---|---|---|---|
| Application | Block | Fuel | Customizable |
| Operating Pressure | Vacuum | Roller Number | Multi-Drum |
| Condition | New | Color | Customizable |
| Heating Method | Dissemination | Heat Source | Electricity/Steam/Gas/Petroleum |
| Origin | China | HS Code | 8419399090 |

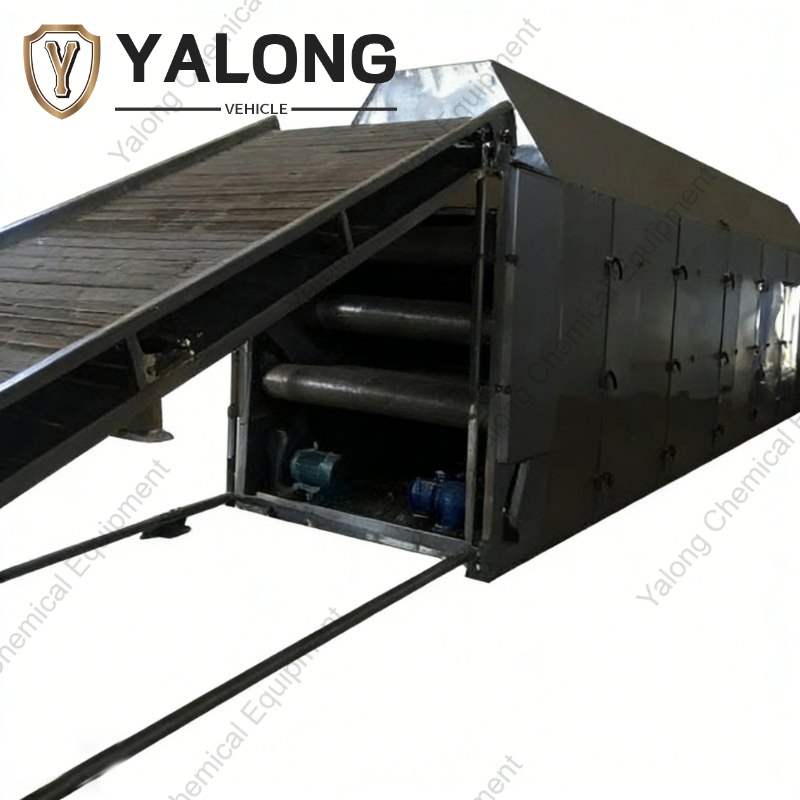

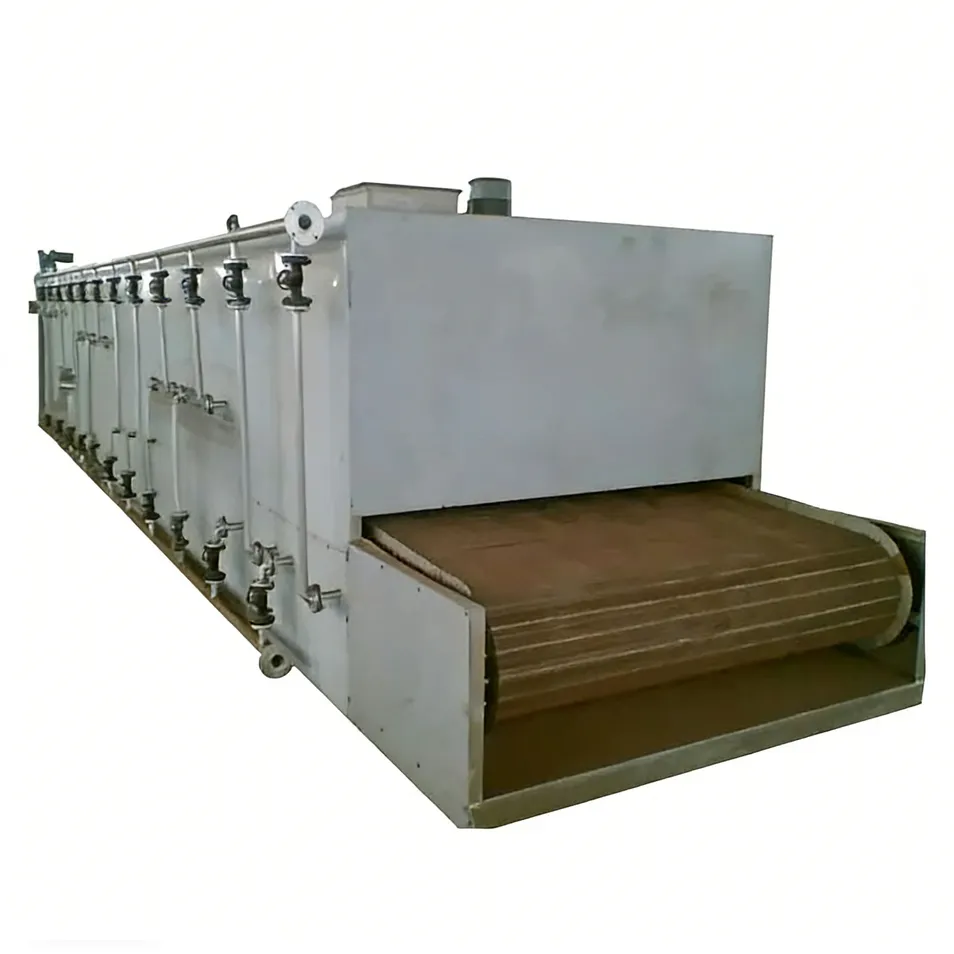

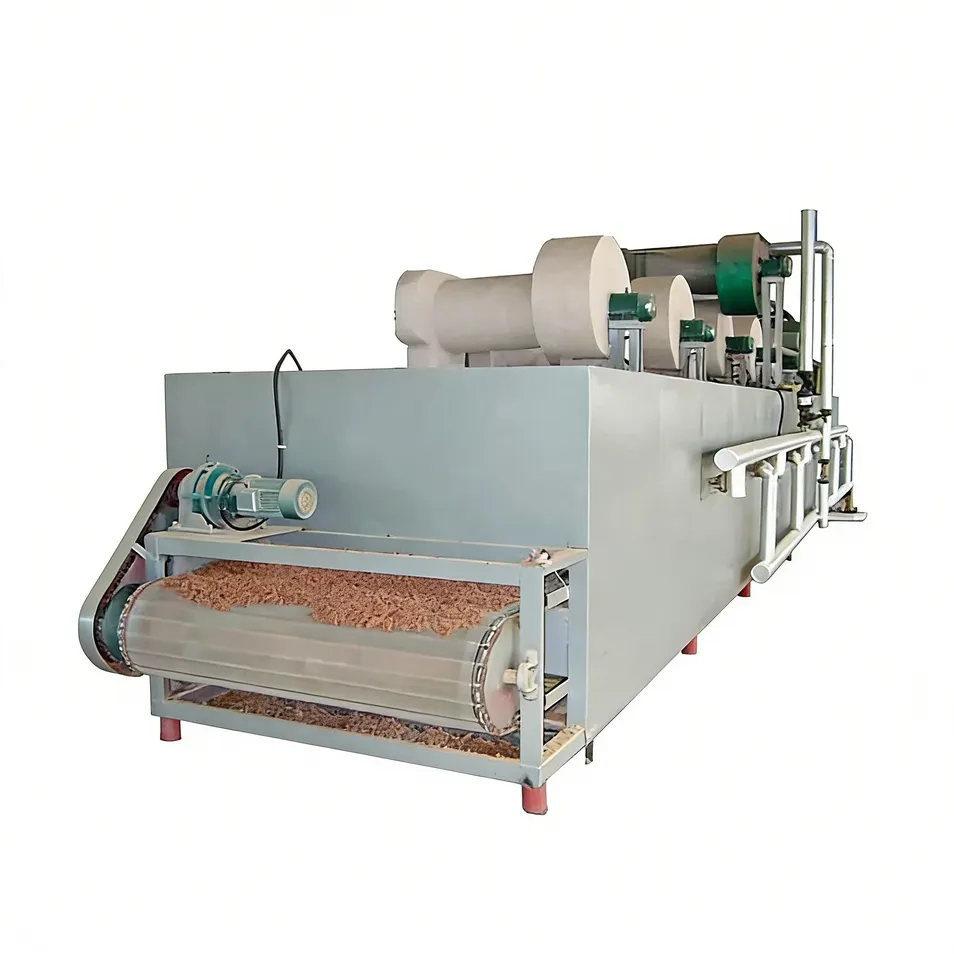

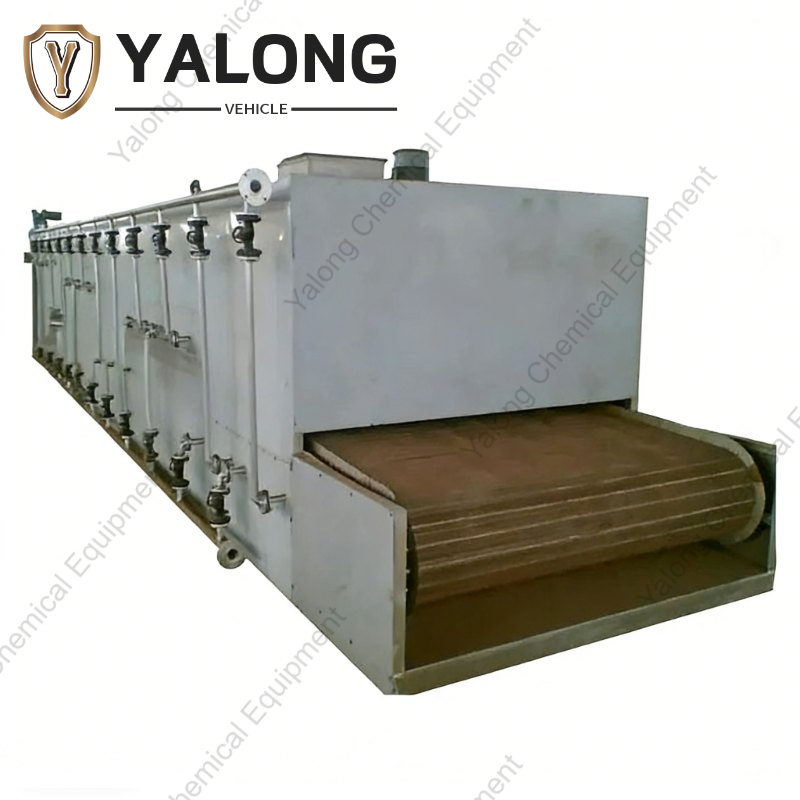

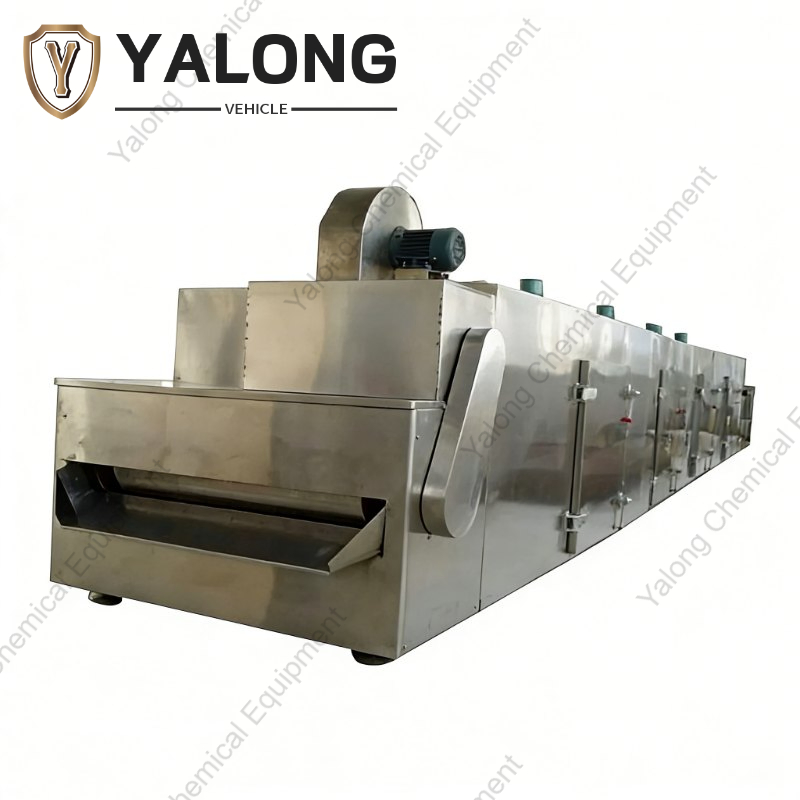

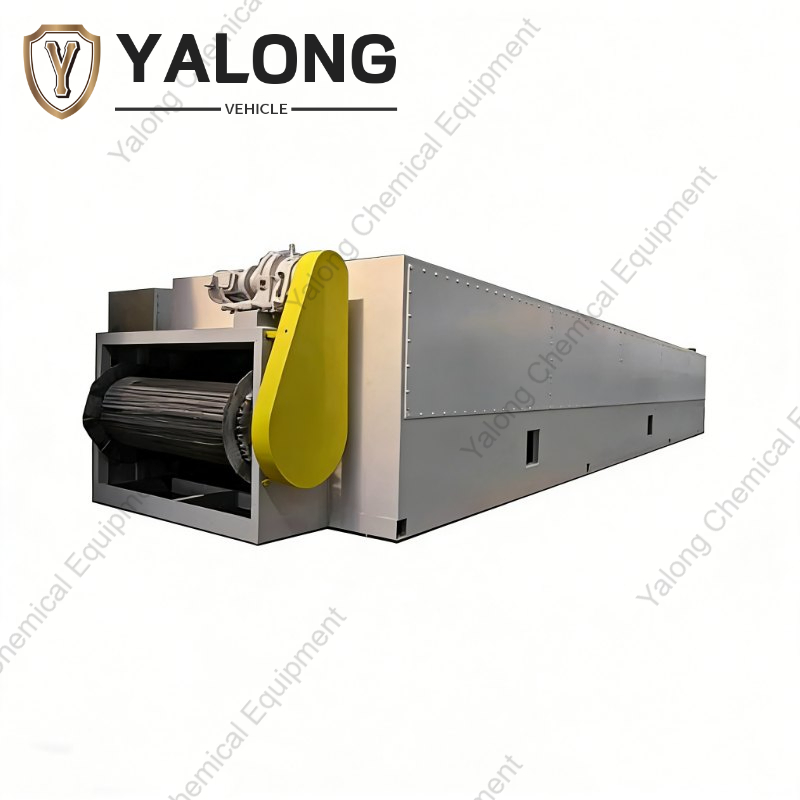

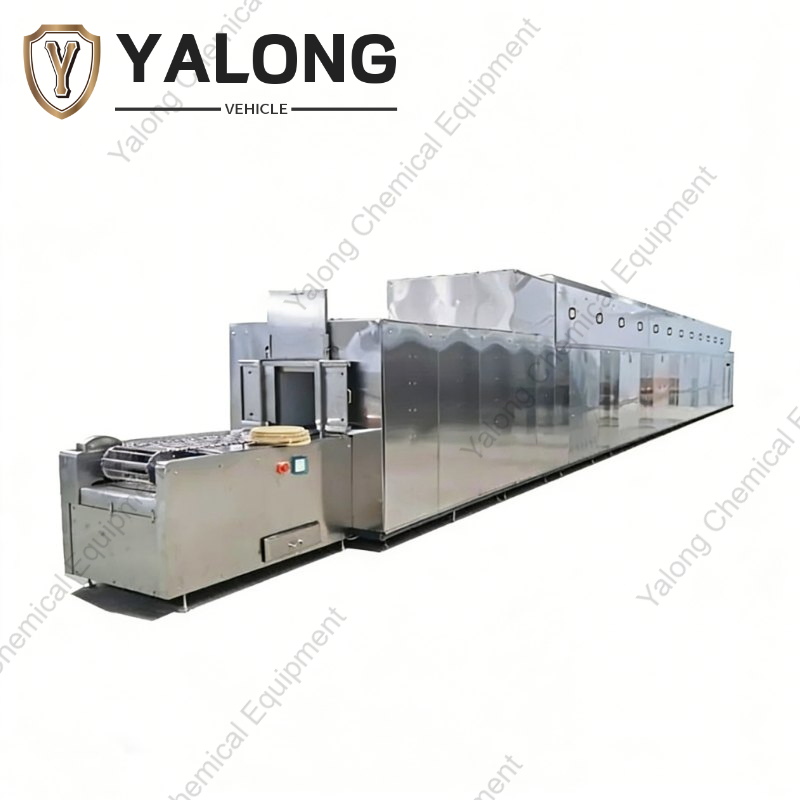

The mesh belt dryer is a continuous batch drying equipment. Its core working principle is to smoothly convey materials into the drying chamber via a conveyor mesh belt. A hot air circulation system ensures full contact between heat and materials, quickly removing moisture.

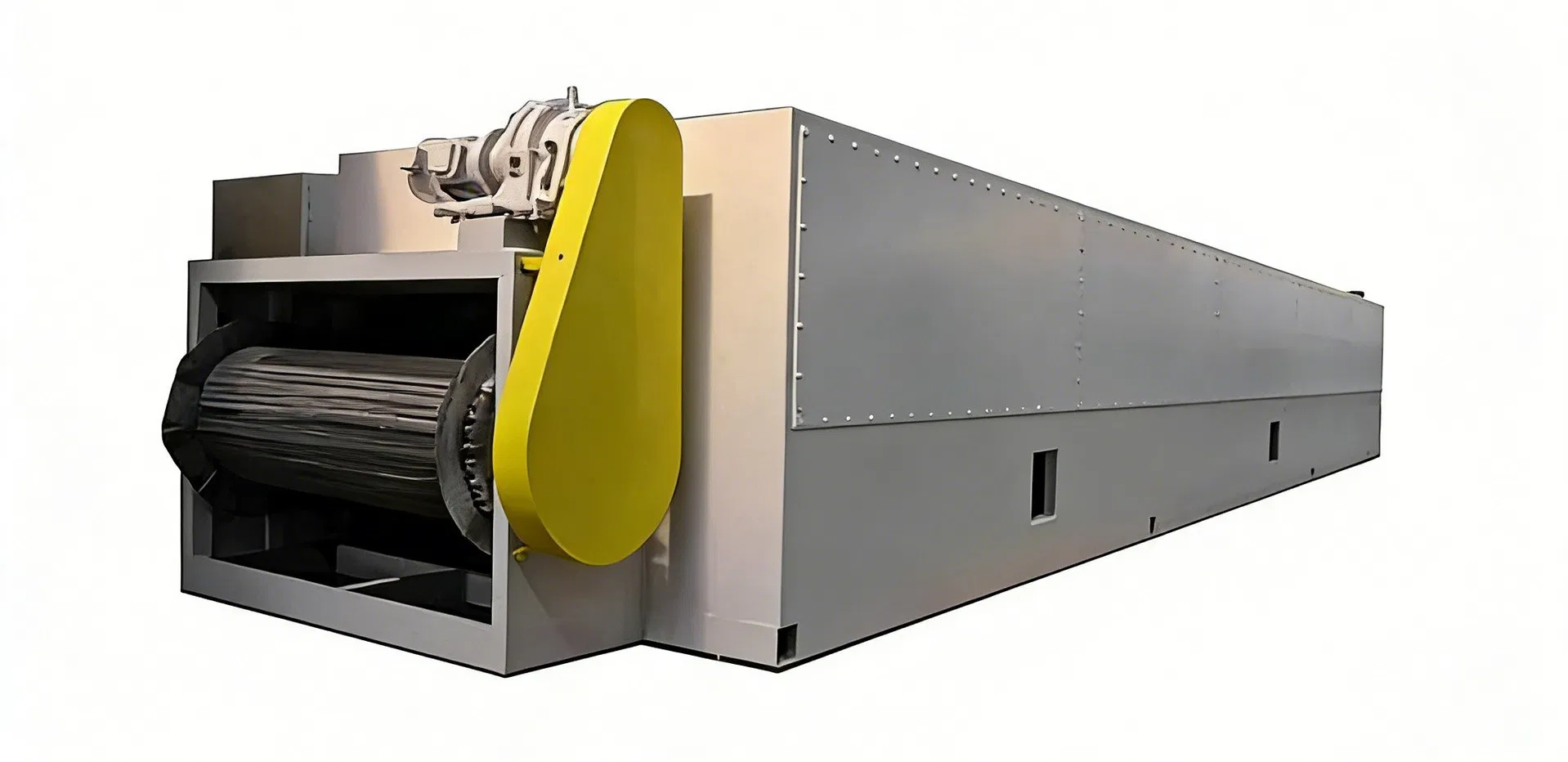

Equipped with a modular design, it consists of a feeding system, conveying mesh belt, drying unit, and control system. Parameters are flexibly adjusted based on material characteristics. The mesh belt is constructed from high-strength, corrosion-resistant stainless steel, ensuring stability under complex conditions.
Used for fruits, vegetables (carrots, apples, mushrooms), grains, soy products, and snack foods. Retains flavor and extends shelf life.
Ideal for Chinese medicinal herbs, granules, and capsule shells. Meets GMP standards with strict temperature control.
Drying plastic particles, resins, pigments, and catalysts without material deterioration.
Suitable for ceramic bodies, gypsum boards, and insulation materials.
Continuous 24-hour operation with minimal manual intervention, enhancing efficiency by over 30%.
Precise hot air circulation avoids local overheating and preserves color and nutritional components.
High-efficiency insulation with heat loss <5%. Optional waste heat recovery increases thermal efficiency to 85%.
Made of 304 or 316L stainless steel, meeting strict hygiene standards for food and pharma.
Custom configurations available upon request.
| Model | Belt Width (mm) | Length (m) | Temp (℃) | Capacity (kg/h) | Dimensions (m) |
|---|---|---|---|---|---|
| WD-1000 | 1000 | 8 | 50-180 | 50-150 | 9.5×1.8×2.2 |
| WD-1500 | 1500 | 10 | 50-180 | 150-300 | 11.5×2.3×2.2 |
| WD-2000 | 2000 | 12 | 50-200 | 300-500 | 13.5×2.8×2.5 |
| WD-3000 | 3000 | 15 | 50-200 | 500-800 | 16.5×3.8×2.5 |
A: Standard models typically ship in 15–30 days. For highly customized units, the lead time is approximately 30–45 days.
A: Yes, the drying temperature is steplessly adjustable, typically ranging from 50℃ to 200℃ depending on the model and material needs.
A: Our dryers are highly flexible and can be powered by electricity, steam, natural gas, or petroleum.
A: Yes, we offer comprehensive project delivery services including on-site installation, debugging, and operation training for your staff.
A: Absolutely. All components contacting the materials are made of 304 or 316L stainless steel, meeting global hygiene standards.
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC certificates.
