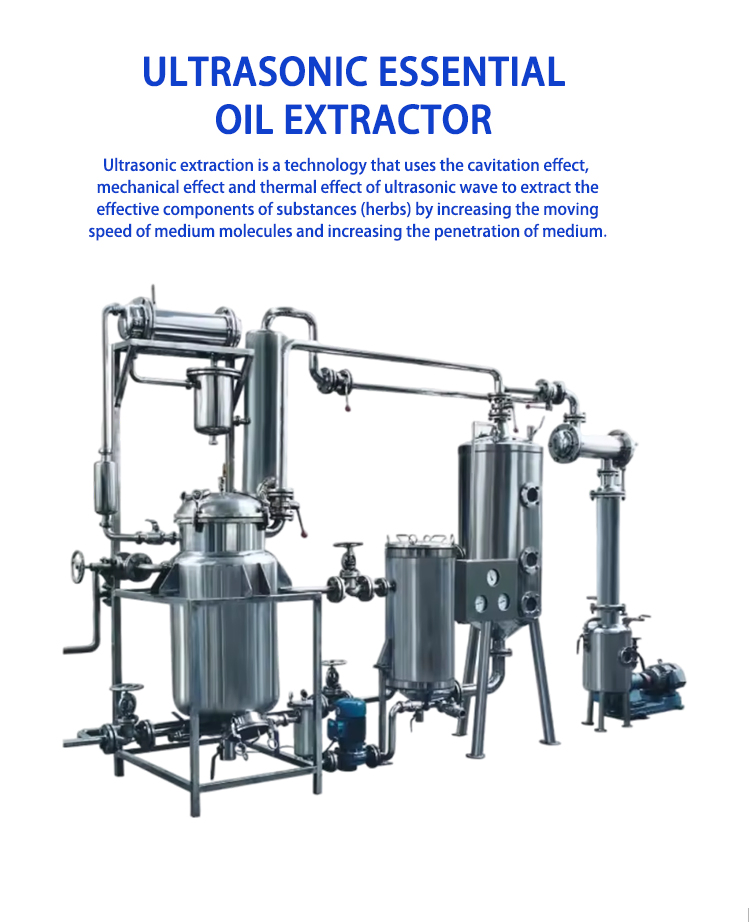

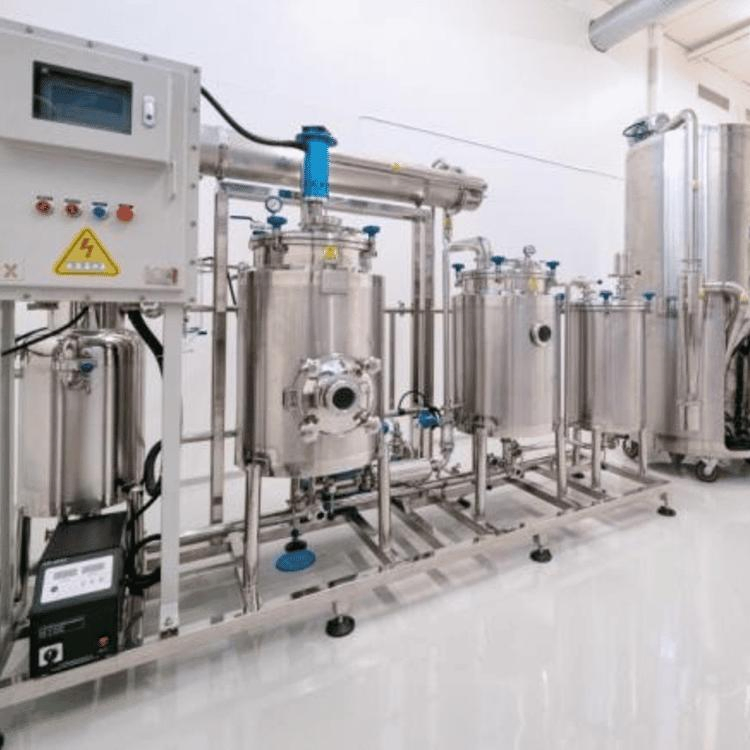

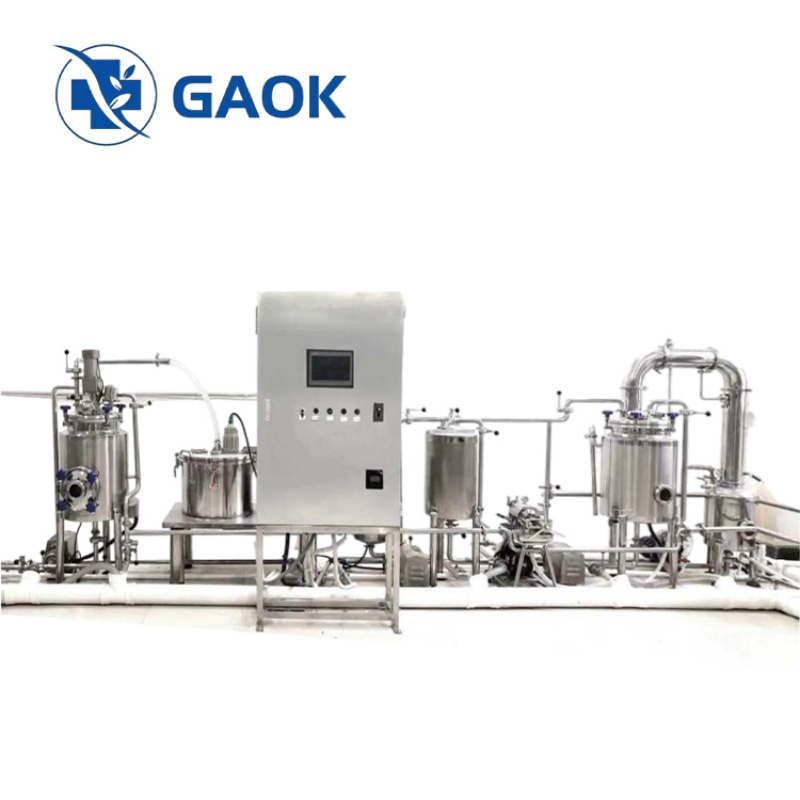

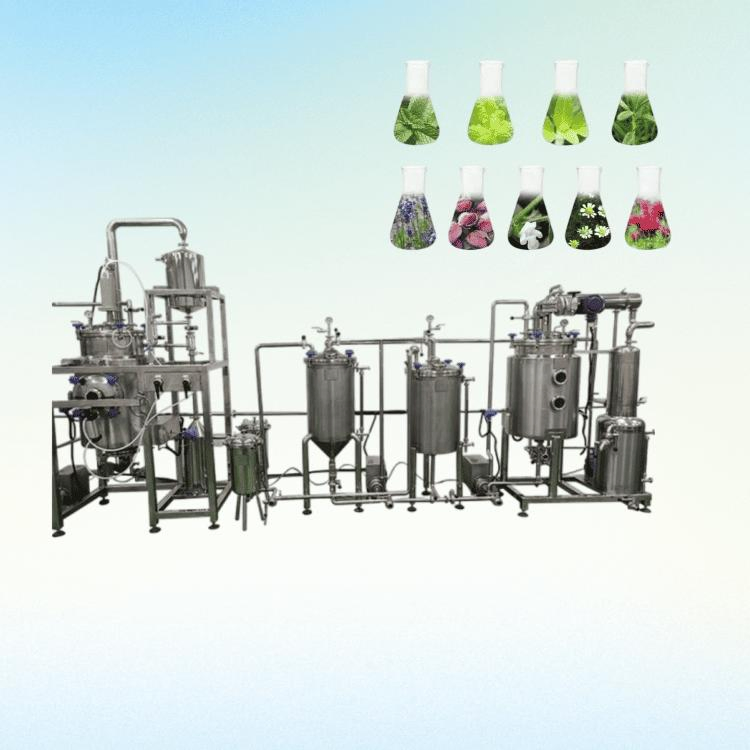

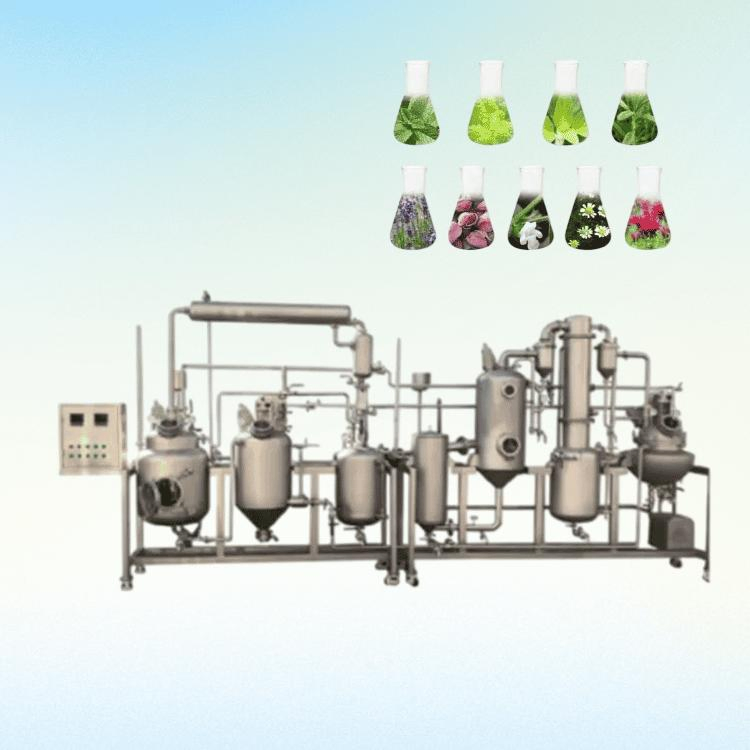

Herbal Tincture Ultrasonic Solvent Extraction and Concentrate Machine

The capacity of the multi-functional extraction and concentration unit is: 5, 10, 20, 30, 50, 100, 200, 300, 500L, etc. It is mainly applicable to laboratory research and development in universities, research institutes and enterprises and public institutions, as well as small and medium-scale trial production lines.

Put the medicinal materials to be extracted into the extraction tank and add a certain proportion of solvents such as water, ethanol, methanol, acetone, etc. according to the production process. The extraction of the active ingredient can be carried out, and the extraction temperature can be set according to actual needs.

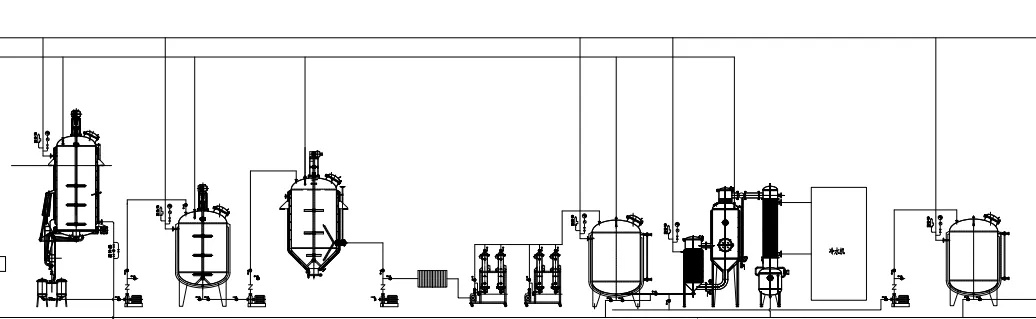

Extract according to the production process. After the extraction is completed, open the pipeline valves in sequence and draw the liquid into the concentration tank for concentration. The temperature of the concentrated liquid is set at the required value, and the vacuum degree is maintained at -0.05 to -0.09MPA. The secondary steam generated during concentration passes through the condenser and cooler to become condensate and is refluxed to the extraction tank.

The new solvent flows from top to bottom through the layers of medicinal materials. The soluble components dissolve and are sent back to serve as new solvent, forming a reflux extraction until completely dissolved. Concentration continues until it reaches the required specific gravity of the ointment.

This product is applicable to various processes such as normal pressure, micro-pressure, water decoction, wet immersion, warm immersion, hot reflux forced circulation, penetration, extraction and concentration of plant essential oils and aromatic oil components. It is also ideal for the recovery and concentration of organic solvents in industries like medicine, health care, biopharmaceuticals, food and beverages, and chemicals, fully complying with GMP pharmaceutical standards.
