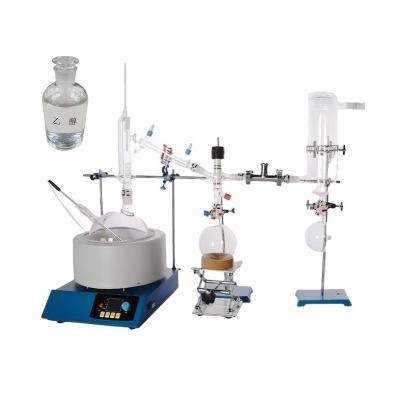

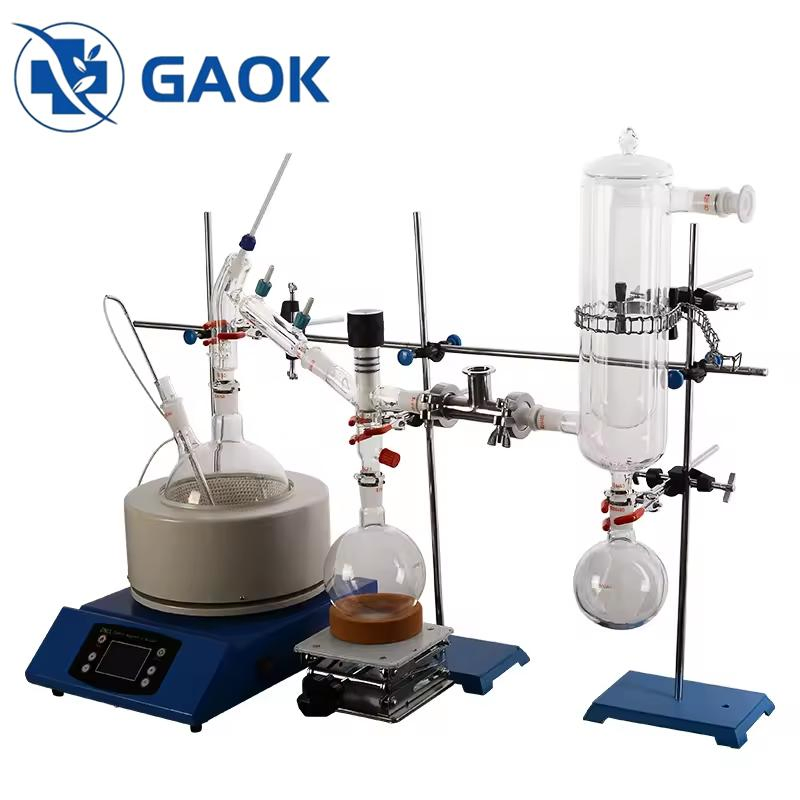

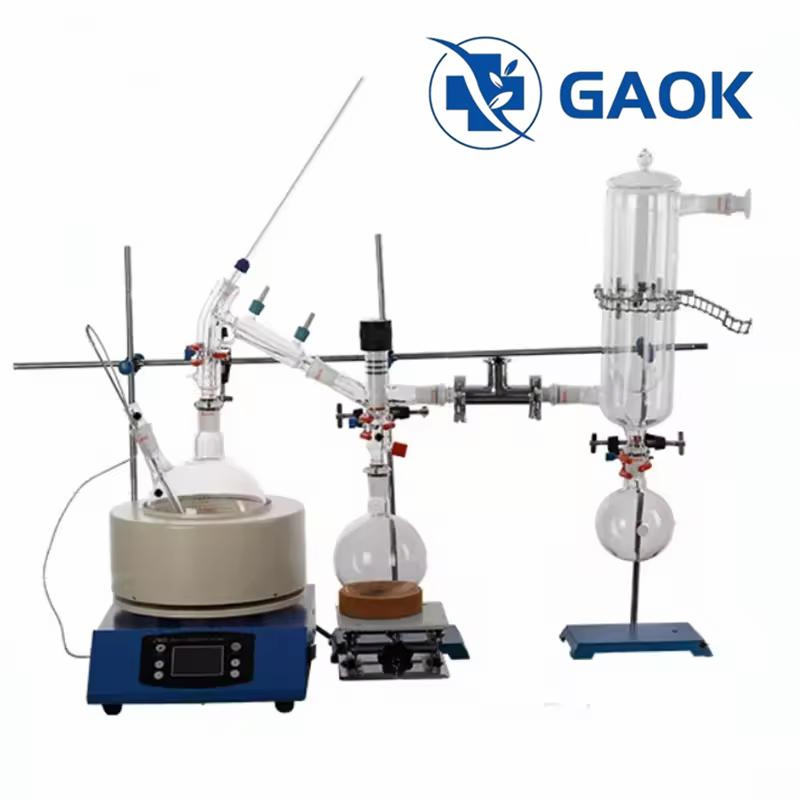

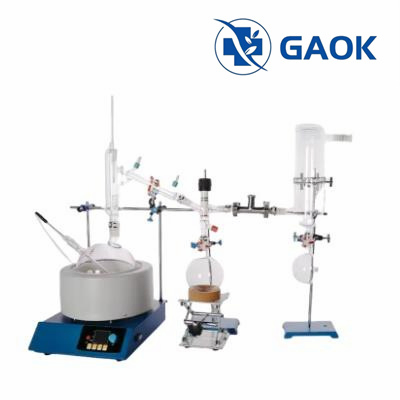

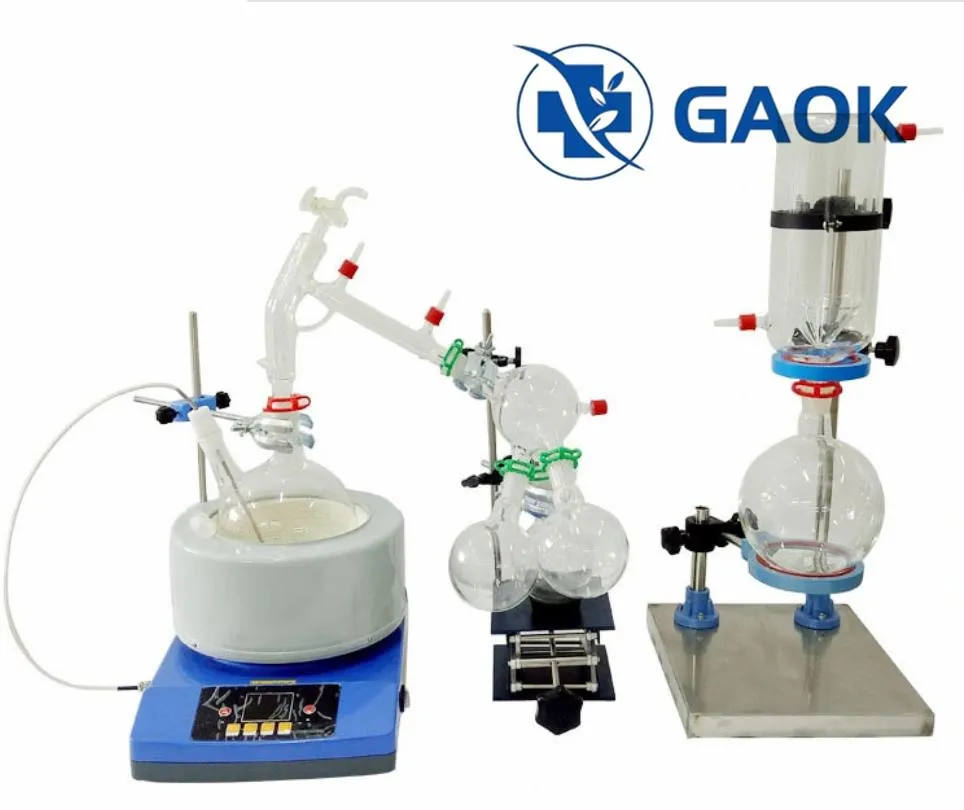

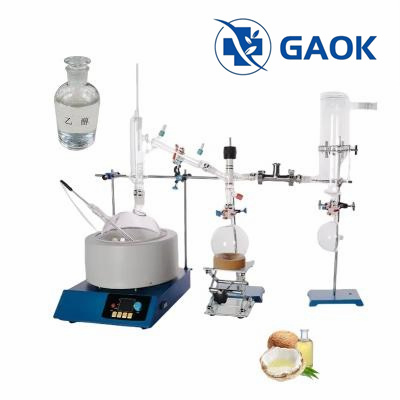

Herbal Oil Short Path Distillation Kit 2L

1 / 5

Herbal Oil Short Path Distillation Kit 2L

Customization:	Available
After-sales Service:	1year
Warranty:	1year

Send Inquiry

Product Description

📊 Basic Information

Model NO.

Voltage

220V

Press Series

Fourth

Condition

New

Customized

Origin

China

🔍 Product Description

The new type adopts a large-scale distiller, so that the evaporation capacity increases, and the heat loss decreases.
The new type adopts a receiving bottle with a valve which can continuously discharge during operation.
The new type adopts a glass sleeve to reduce leakage and obtain a better vacuum environment.

📋 Specifications

Model		SPD-2L	SPD-5L	SPD-10L	SPD-20L
Material		Borosilicate Glass 3.3
Heating Temperature		Ambient to 300ºC
Working Pressure		Around 5 Pa
Distillation Vessel	Volume(L)	2	5	10	20
Distillation Vessel	Size	2×24/40 joint	34/45 & 24/40 joint	24/40 & 2×34/45 joint	45/50 & 2×29/42 joint
Receiving Vessel	Volume(ML)	2×500 ml	1×500ml, 1×1000ml	2×1000ml, 2×2000ml	2×2000ml, 2×5000ml
Receiving Vessel	Size	24/40 joint	24/40 joint	24/40 joint	29/42 joint
Cold Trap	Dry Ice Volume(L)	1 L		2 PCS×1L
Heating Mantle	Heating Power (w)	650	1100	2100	3000
	Rotating Speed(rpm)	50-1800
	Motor Power (w)	40
Vacuum pump	Pumping Rate(L/S)	2	4	4	6
Cooling Circulator	Cooling Temperature	-10ºC~85ºC
General	Voltage	110V 60HZ or 220V 50/60HZ, 1 Phase

📜 Certifications

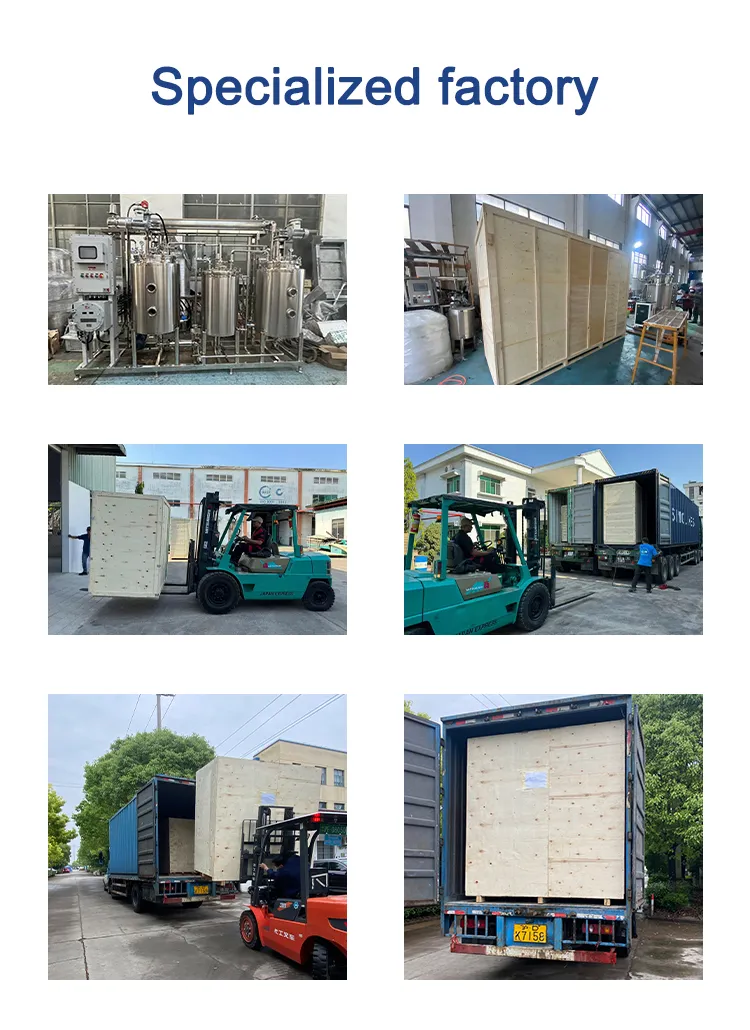

📦 Packaging & Shipping

🏢 Company Profile

We are a collection of product design, development, manufacturing, engineering installation and after-sales service in one of the emerging comprehensive enterprises. Our products are strictly in accordance with relevant standards for design and production. Our solutions involve pharmaceutical engineering, dairy, beverage, biological engineering, chemical engineering, oil refining equipment, and laboratory equipment processing. With an abundant technical service team, we provide customers with new or expansion projects including process design, plant layout, product formula, technology consultation, and turnkey engineering services. Through constant innovation, we have grown rapidly to face domestic and international markets with advanced production and testing equipment.

❓ Frequently Asked Questions

What materials are the distillation kits made of?

All our distillation kits are manufactured using high-quality Borosilicate Glass 3.3, known for its excellent thermal resistance and durability.

What is the maximum heating temperature for these units?

The system supports a heating temperature range from ambient conditions up to 300ºC.

Are different voltage configurations available?

Yes, we provide both 110V 60Hz and 220V 50/60Hz options to suit different regional power requirements.

How does the new glass sleeve improve performance?

The specially designed glass sleeve helps to minimize leakage, which ensures a more stable and higher quality vacuum environment during the distillation process.

Can the receiving bottle be discharged during operation?

Yes, the new design features a receiving bottle equipped with a valve that allows for continuous discharge without interrupting the distillation cycle.

Is customization available for specific laboratory needs?

Yes, we offer customized solutions to meet the specific technical and processing requirements of our clients.
