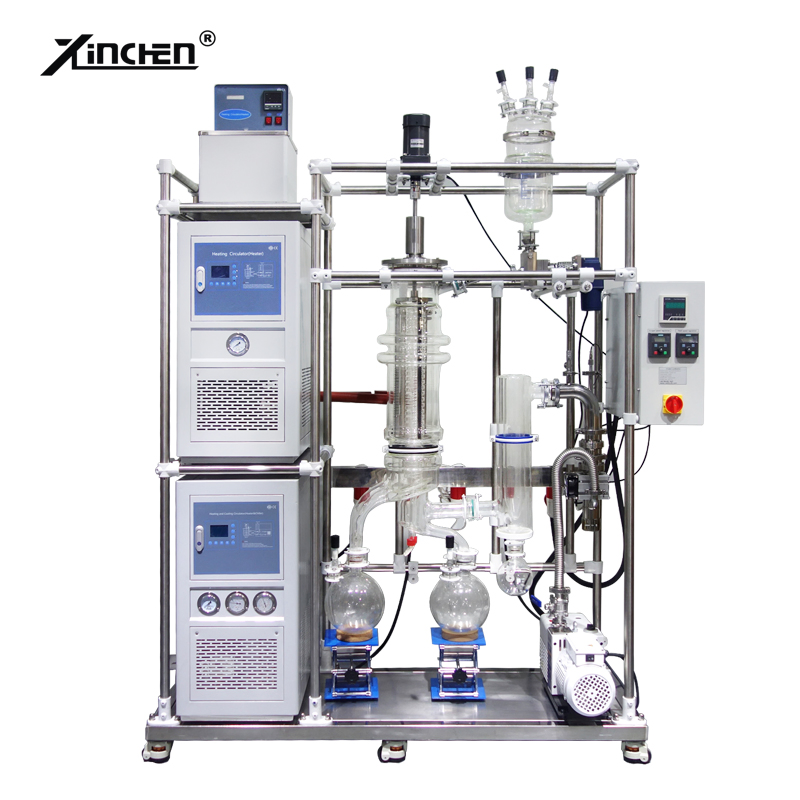

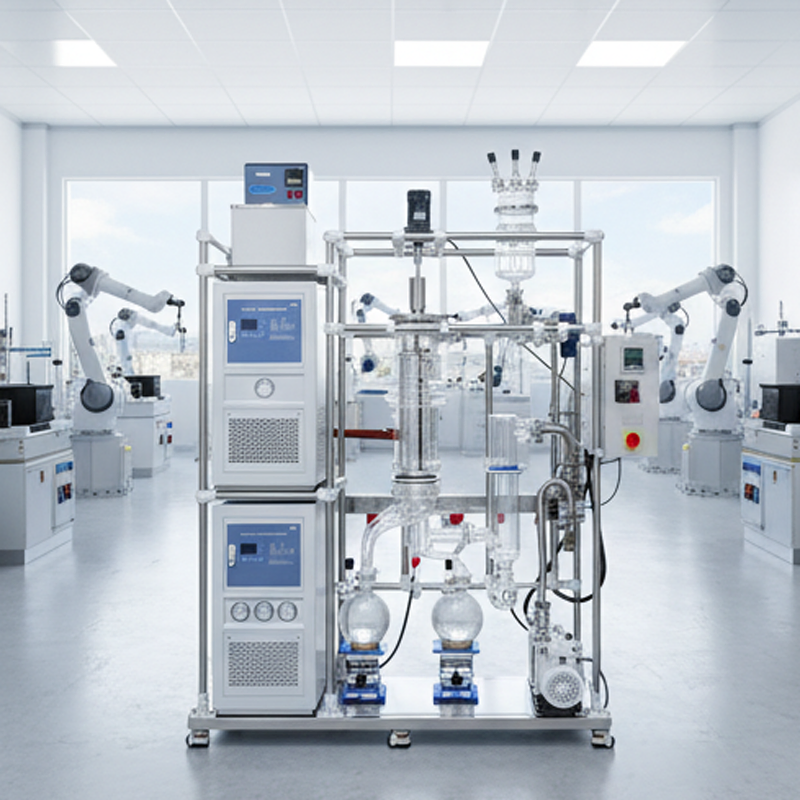

Premium Essential Oil Distillation Kit for Herb Extraction
Molecular distillation system is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules for example vitamins and polyunsaturated fatty acids.

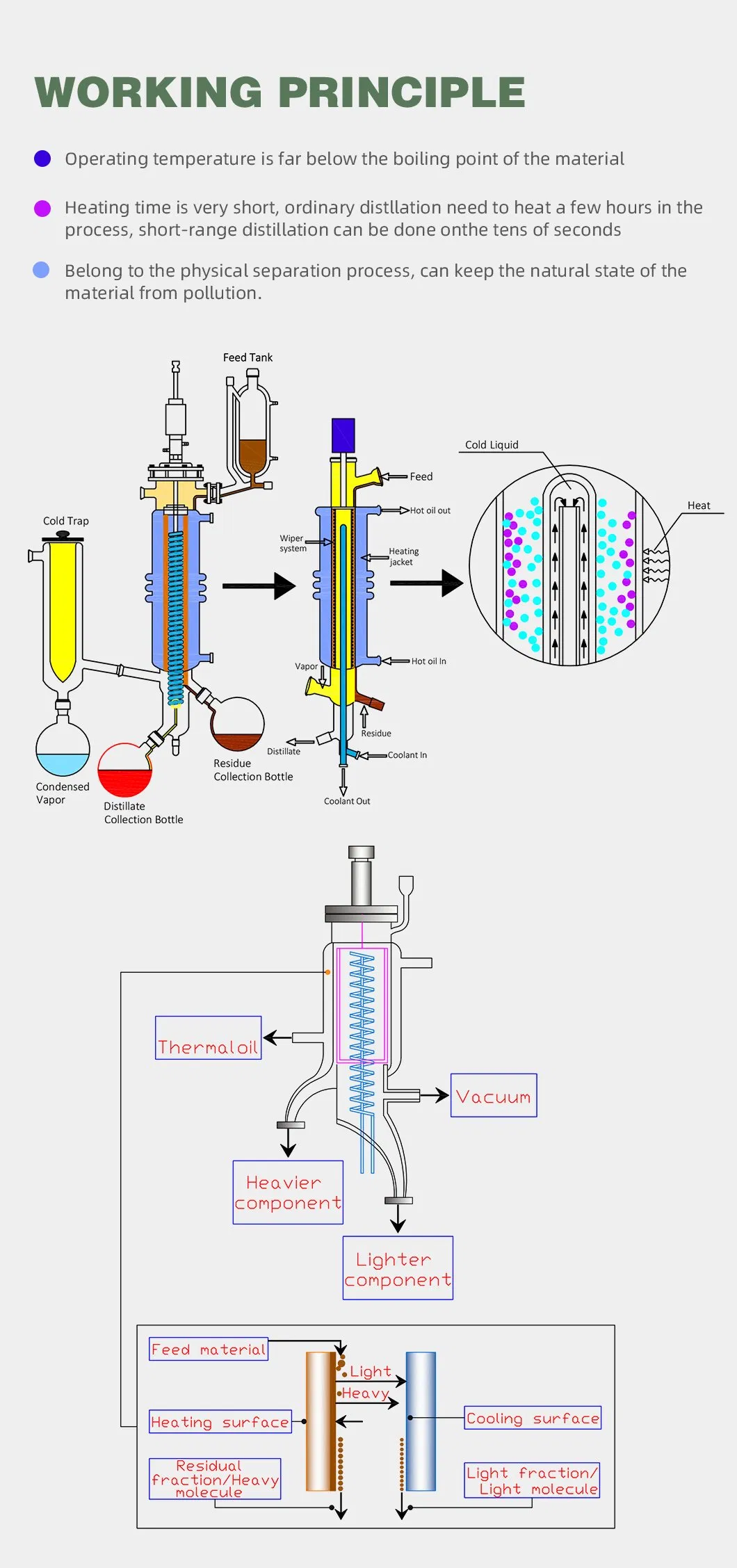

The process of distillation when carried out in an apparatus designed for high vacuum in order to allow the molecules escape from the warm liquid into a cooler surface inside a condenser before coming in contact with other molecules and finally settle down into the liquid is known as molecular distillation.

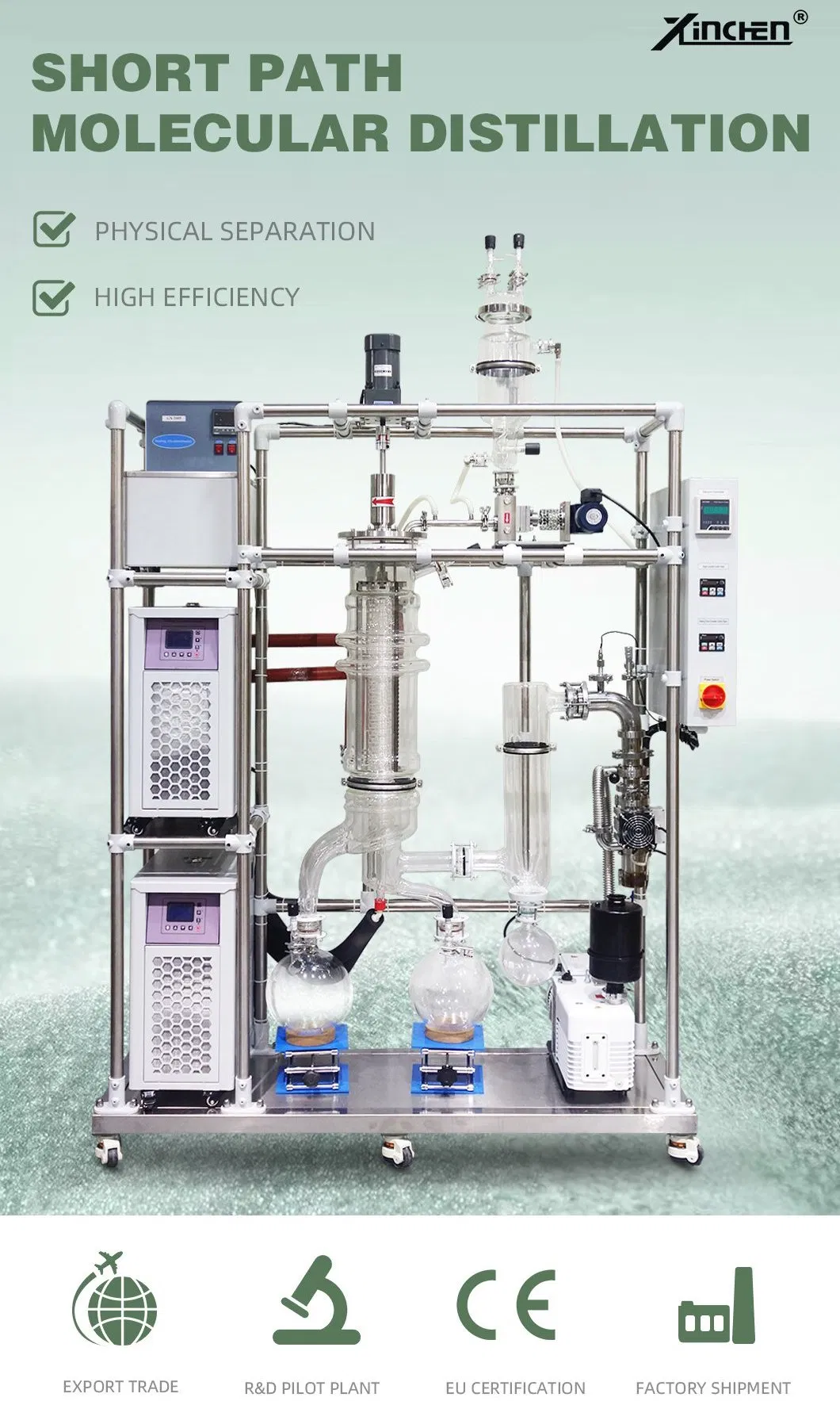

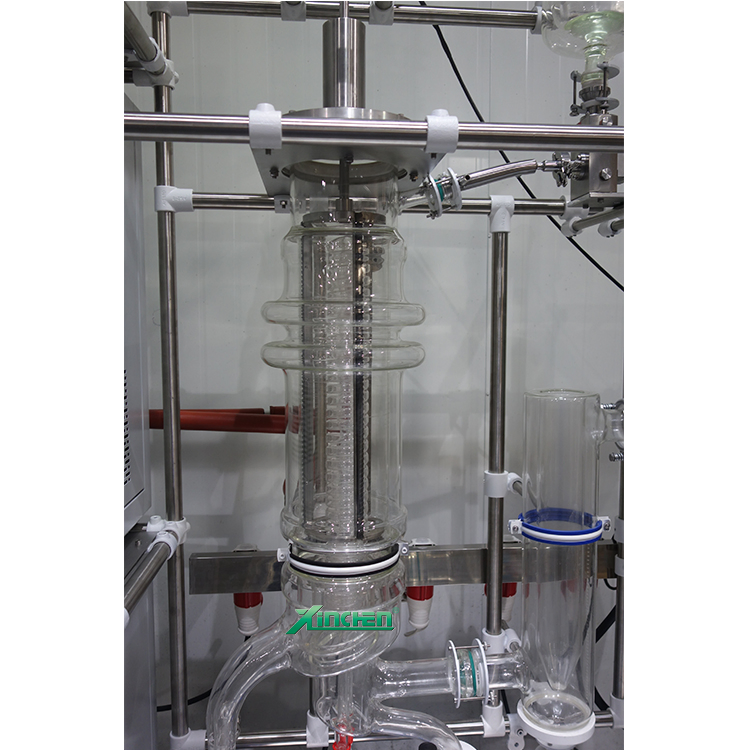

Short Path Distillation can achieve "liquid-liquid" separation at very low vacuum according to the mean free path difference of molecular motion under the temperature of much lower than the liquid boiling point. The scraper system forcing liquid film evaporation or distillation of a highly efficient evaporation.

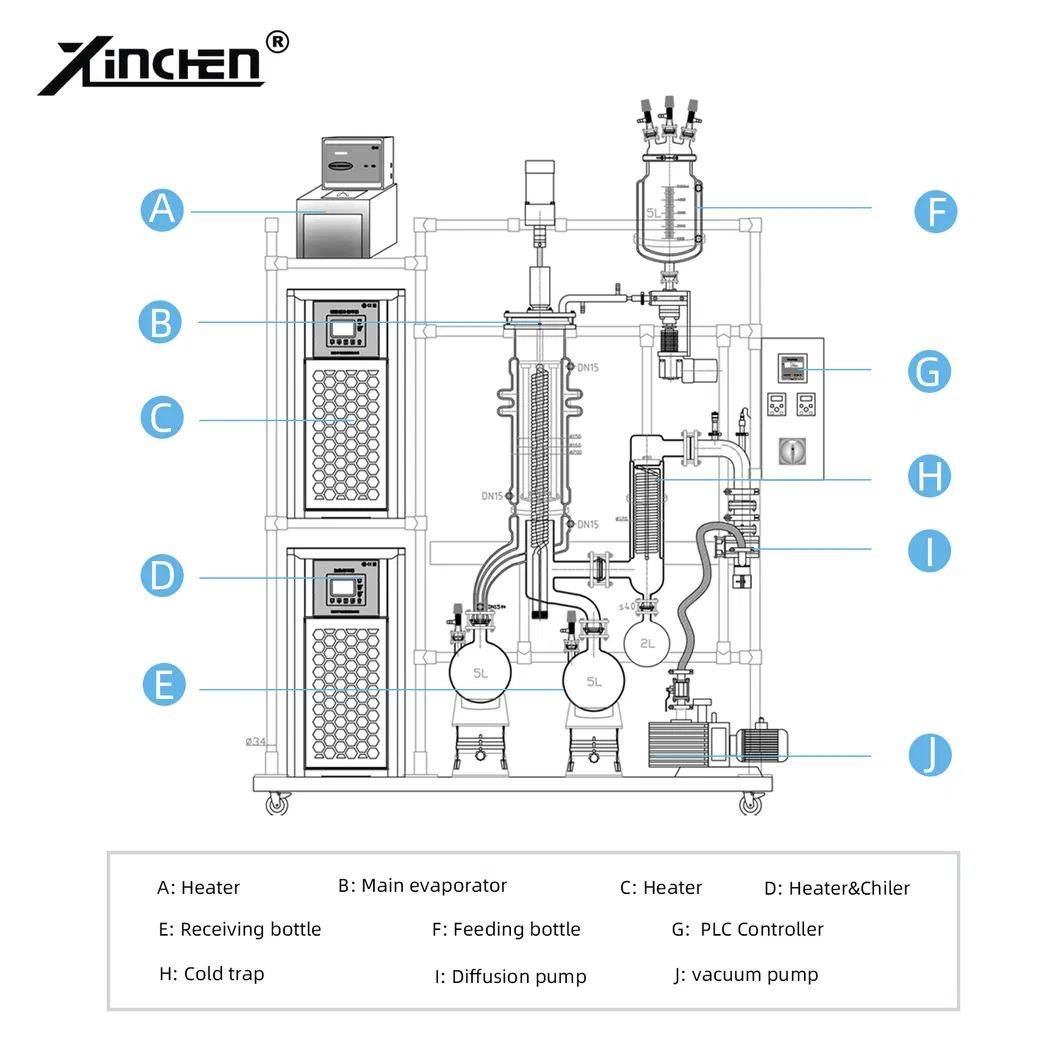

| Model | Evaporation tube Φ (mm) | Heat transfer area (m2) | Built-in cooling area (m2) | Feeding bottle (L) | Throughput (L/H) | Motor power (W) | Motor speed (rpm) |
|---|---|---|---|---|---|---|---|
| NKDF-60 | 60 | 0.05 | 0.03 | 1 | 0.8 | 140 | 800 |
| NKDF-80 | 80 | 0.1 | 0.25 | 1 | 1.5 | 140 | 800 |
| NKDF-100 | 100 | 0.15 | 0.3 | 1 | 3 | 180 | 800 |
| NKDF-150 | 150 | 0.25 | 0.4 | 2 | 5 | 180 | 800 |
| NKDF-200 | 200 | 0.4 | 0.5 | 3 | 8 | 250 | 800 |
| NKDF-300 | 300 | 0.6 | 0.8 | 5 | 10 | 250 | 500 |
1. Packing Method: Standard export wooden box or based on specific requests.
2. Shipping Method: Options include Express (door to door, 5-7 working days), Air (to destination airport, ~5 working days), or Sea (specific timeline based on shipping line).
3. Warranty: Any broken or damaged glass parts caused by delivery will be fully afforded by the company.
