Product Description

Basic Specifications

Automatic Grade

Automatic

Application

Dairy Products, Oil, E-Liquid Filling Line

Type

Filling and Sealing Machine

Forming Species

Bottle Forming

Forming Function

Filling

Driven Type

Electric

Material Type

Liquid

Packaging

Wooden Case

Packaging Material

Composite Materials

Filling Head

1 / 2 / 4 / 6 / 8 / 12 / 14 / 16

Filling Accuracy

Capping Rate

99%

Air Consumption

0.4-0.8MPa

Specification

2500*1800*1800mm

Origin

China

Production Capacity

1000/Month

Product Description

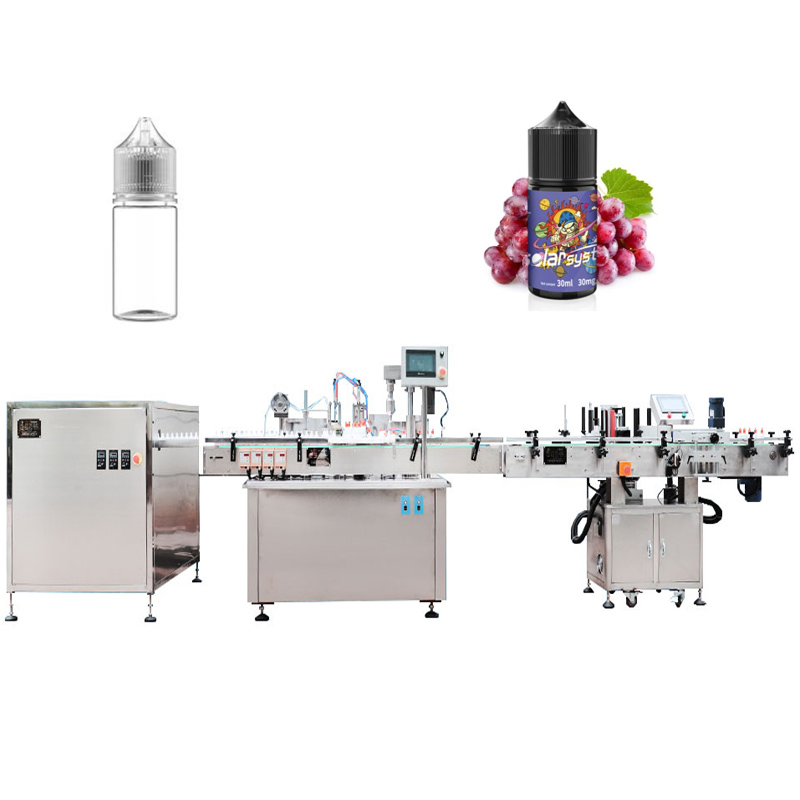

E-Liquid / Herbal Tincture Filling Machine / Dropper Bottle Filling Capping Machine

This filling line introduces and absorbs advanced technology, independently R&D specifically for E-liquid filling, capping, labeling, and cartoning. The line adopts a high-precision enclosed cam indexing station, ensuring reliable operation and long-term use with minimal maintenance.

⚙️ Process

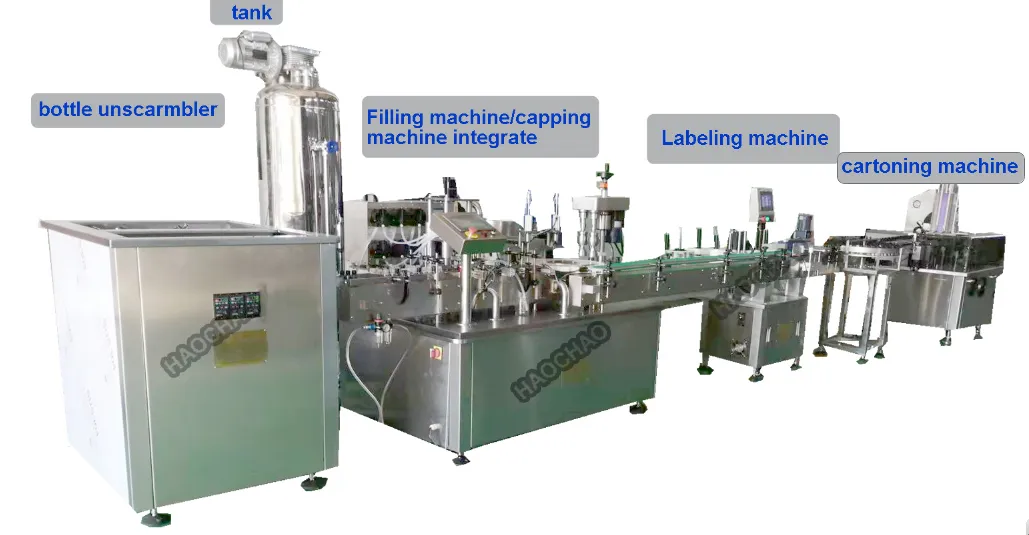

Bottle Unscrambler → Filling/Capping → Labeling → Cartoning

💻 Smart Control
HMI & PLC Control for Intuitive Operation

🛡️ GMP Standard
SUS304 & 316L Stainless Steel

✔ Frequency conversion control, speed adjustable arbitrarily, automatic counting.
✔ Automatic stop function: No bottle, no filling.

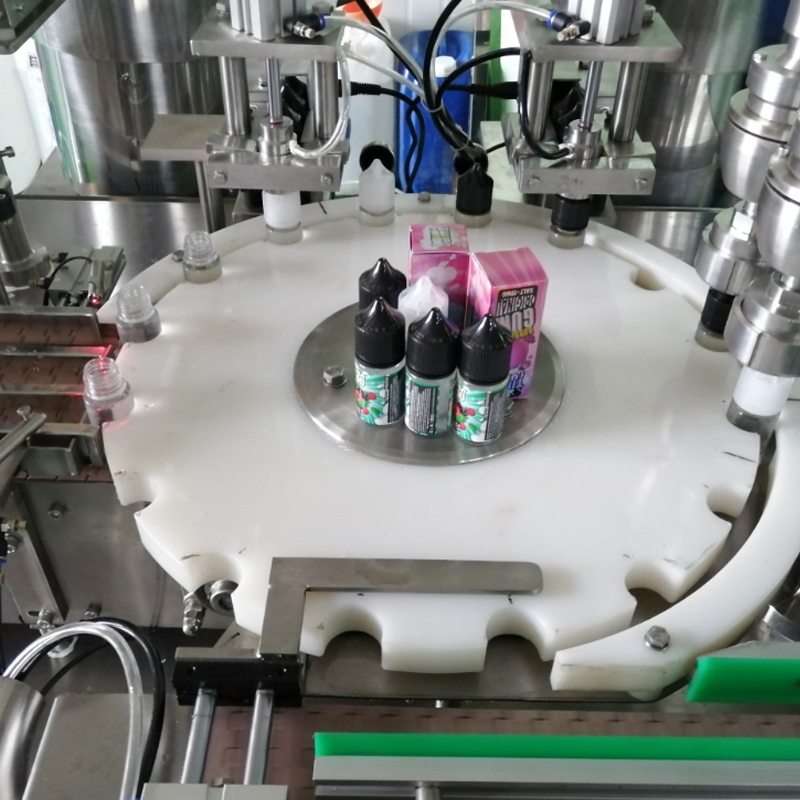

✔ High-precision cam indexer control for precise positioning.

Model	HCGX-5/50
Filling Volume	2-500ml (Customizable)
Loading Error	≤ ±1% (Based on water)
Capping Pass Rate	≥99%
Output Speed	30-50BPM / 60-90BPM / 90-160BPM
Power Supply	380V/50Hz or Customizable
Total Power	8kW (Whole line)

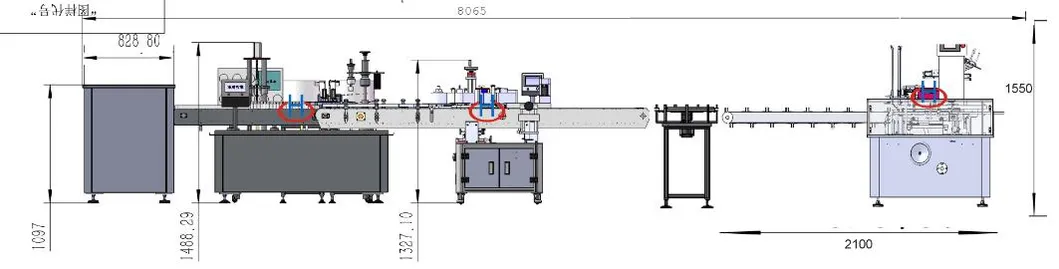

Dimensions (LWH)	8100 * 1550 * 1800 mm
Weight	Approx. 3000kg
Pump Type	Peristaltic / Ramp / Pneumatic Plunger Pump
Material	Stainless Steel 304 (Outside), 316 (Contact Parts)
