| Model NO. | DXDCH-10D with envelope |
| Type | Forming Filling Sealing Machine |
| Forming Species | Bag Moulding |
| Forming Function | Forming, Filling, Seal |
| Driven Type | Electric |
| Material Type | Grain |
| Packaging | Bag, Pouch, Sachet, Packet |
| Packaging Material | Film |
| Usage | Packing Tea, Green Tea, Black Tea, Coffee |
| Speed | 20-40 Bags/Min |
| Capacity | 1-12 Ml |
| Power | 220V, 50Hz, 1.5kw |
| Weight | 700kg |
| Dimension | 3000X1500*2000 (mm3) |
| Certification | CE, Mc, SGS |
| Bag Format | Inner Pyramid Nylon Bag Outer Plastic Bag |
| Machine House | 304 Stainless Steel |
| HS Code | 8422303090 |
| Production Capacity | 3000PCS/Year |
It's widely used in automatic packaging of tea and decoction pieces in food and medicine industries.
| Parameter | Details |
|---|---|
| Machine model | DXDCH-10D with envelope |
| Weighing method | Scale |
| Combined feeding | Can combine 6 kinds material |
| Packing speed | 50-80 bags/min (varies by weight) |
| Packing weight | 1-15g |
| Packing accuracy | ±0.2g |
| Inner bag size | 120mm, 140mm, 160mm, 180mm |
| Inner bag sealing type | Pyramid bag, flat bag |

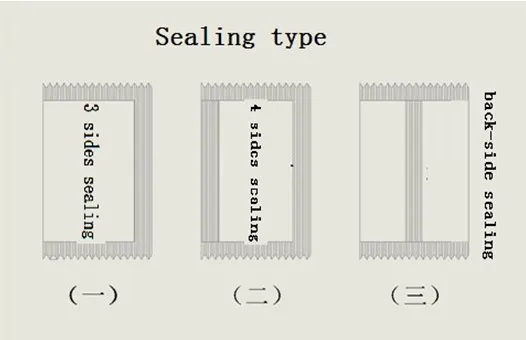

| Envelope sealing type | Back-side sealing, 3 sides sealing |
| Suitable film material | PP, PE, PVC, PS, EVA, PET, etc. |
| Power | 220V/50Hz/2KW |
| Machine weight | 887kg |
| No. | Name | Brand | Origin |
|---|---|---|---|
| 1 | PLC | Vico | China |
| 2 | Touch screen | Vico | China |
| 3 | Ultrasonic | Xucheng | Taiwan |
| 5 | Servo motor | Vico | China |
| 7 | Solenoid valve | AirTac | Taiwan |
| 12 | Rodless cylinder | SMC | China |
| 15 | Emergency switch | Delixi | China |
| 18 | Proximity switch | Omron | China |
* Full component list available upon technical review.
Our engineers provide door-to-door service and operational training. Support is available 24 hours a day with a sufficient stock of spare parts to ensure timely maintenance and minimal downtime for your production line.
