Full Automatic Essential Oil E-Liquid Herbal Tincture Filling Machine Dropper Bottle Filling Capping Machine

1 / 5

Full Automatic Essential Oil E-Liquid Herbal Tincture Filling Machine Dropper Bottle Filling Capping Machine

Customization:	Available
After-sales Service:	Online-Service
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.	PX-BFC850
Type	Volumetric Filling Machine
Automatic Grade	Automatic
Material Type	Liquid
Filling Valve Head	Multi-Head
Feed Cylinder Structure	Single-Room Feeding
Dosing Device	Plunger
Filling Principle	Pressure
Packaging Container Lifting Structure	Pneumatic Lifting
Structure	Rotary
Packaging	Bottle
Packaging Material	Plastic
Drive	Servo System
HMI	7.5inch Color Touch Screen Control
Protection	Comprehensive Safety Alarm System
Detecting System	Vial Detector & Counter
HS Code	8422301090
Production Capacity	1000-3000bph

Packaging & Delivery

Package Size	800.00cm * 600.00cm * 350.00cm
Package Gross Weight	350.000kg
Transport Package	Non-Fumigation Wooden Box

Product Description

The latest small bottle filling line is rated at 30-60 fillings per minute, depending on filling volume. It is designed for online filling of 10-180ml containers. The machine is servo-driven, which maintains high accuracy and speed; users simply enter the ideal filling volume and speed in the HMI interface.

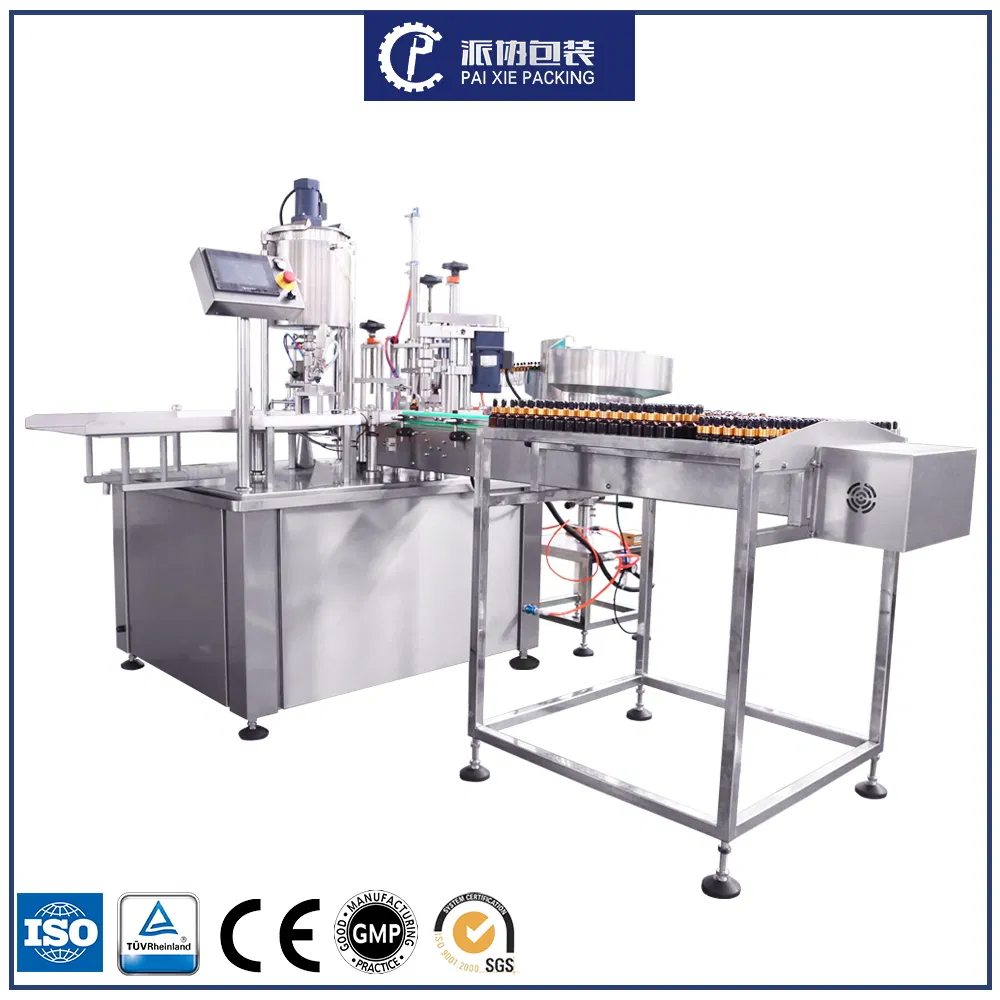

Equipped with a mixing hopper at the top, this equipment is suitable for both liquids and pastes. The mixing motor drives a paddle to ensure strong material fluidity. It handles different bottle specifications with ease, featuring built-in scales to record adjustment positions for quick changeovers.

Operation Process:

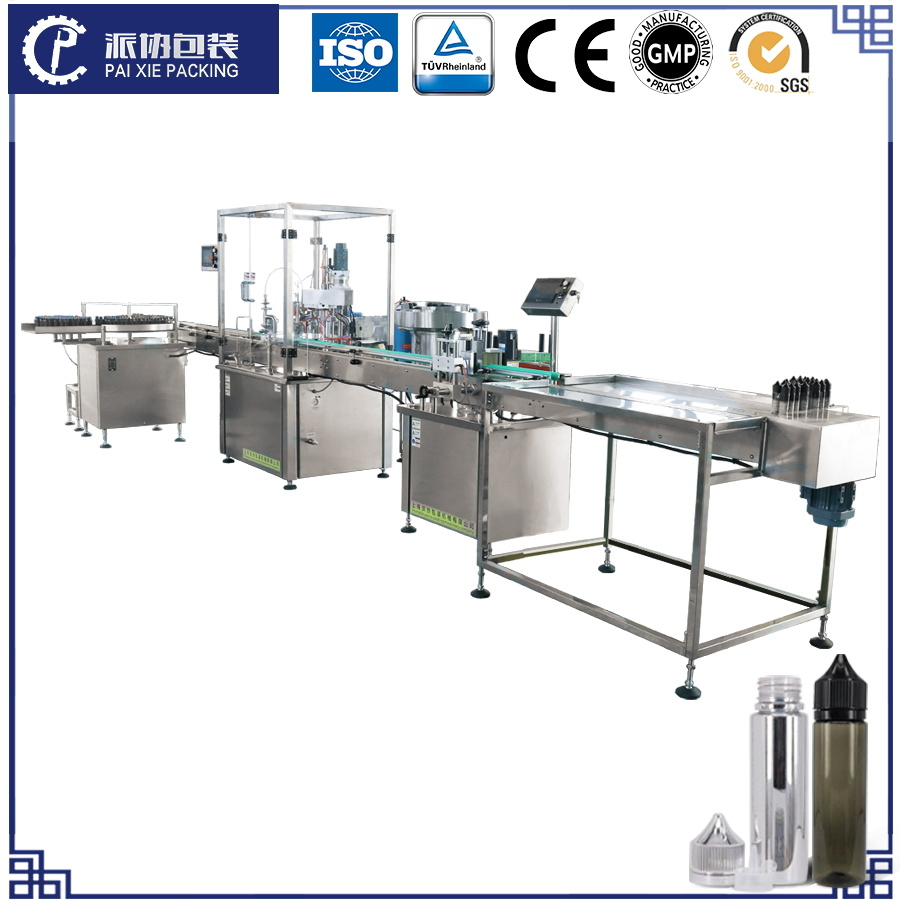

Bottle unscrambler / bottle feeding table -> Bottle filling and capping -> Labeling -> Cartoning -> Collecting table (Customized)

01. Smart Control
HMI and PLC control for easy operation and accurate measurement.

02. Variable Speed
Frequency conversion control allows arbitrary speed adjustment and automatic counting.

03. Intelligent Sensors
Automatic stop function ensures no bottle, no filling.

04. High Precision
Servo motor drive provides precise positioning and filling.

Technical Parameters

Model	PX-BFC80
Yield (pcs/min)	40BPM (Customized)
Filling Heads	4 (Customized)
Filling Pump	Peristaltic pump or Piston Pump
Work Voltage	110/220/380V 50/60HZ
Air Pressure	0.6MPA
Accuracy	±1%
Power	2KW
Driving	Servo motor
Direction	5-180ml
Pump Volume	200ml
Unit Size	12009002200mm
Weight	550kg
Material	SS304 + SS316

Key Advantages & Innovation

Compared with traditional machinery, this smart filler offers an enhanced operational experience:

Servo Driving: Operators can edit filling parameters directly on the HMI for various products.

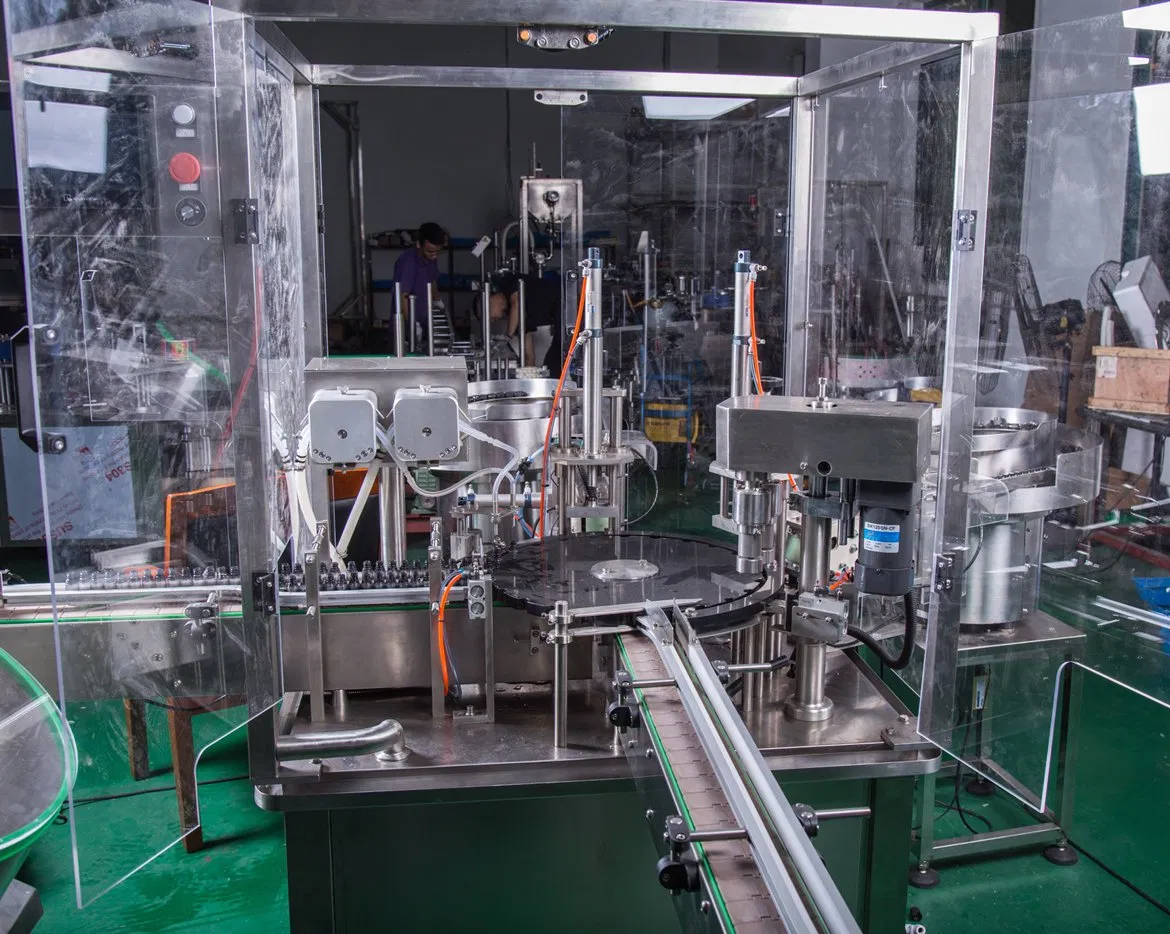

Safety Protection: 150mm width SS304 protection frame with induction switches stops the machine if doors are opened.
Quick Adjustment: Built-in scale rules for different bottle types save time during changeovers.
Sanitary Design: Constructed from SS304 and SS316 to prevent pollution and ensure product quality.
Ready to Use: Delivered as a whole unit to minimize on-site installation stress.

Frequently Asked Questions

How does the machine handle different bottle sizes without complex adjustments?

The machine uses a servo-driven system and integrated scale rules. You simply enter the desired parameters into the HMI and use the physical scales to record and replicate the positions for different bottle specifications.

Is the machine suitable for thick liquids or pastes?

Yes, the machine includes a mixing hopper with a motorized paddle at the top, which ensures that even thick liquids and pastes maintain strong fluidity for consistent filling.

What is the filling accuracy of the equipment?

Thanks to the high-precision servo motor drive and PLC control, the machine achieves a filling accuracy of ±1%.

How is the quality of the materials used?

The entire machine is constructed using SS304 and SS316L stainless steel, complying with GMP requirements to protect your product quality and prevent contamination.

What safety features are included for the operator?

It is equipped with a comprehensive safety alarm system and a 150mm SS304 protection frame with induction switches that automatically stop the machine if the plexiglass door is opened.

How difficult is the installation process?

The machine is delivered as a complete, integrated unit. This design solves the stress of complex after-sale installations, allowing for much faster deployment at your facility.
