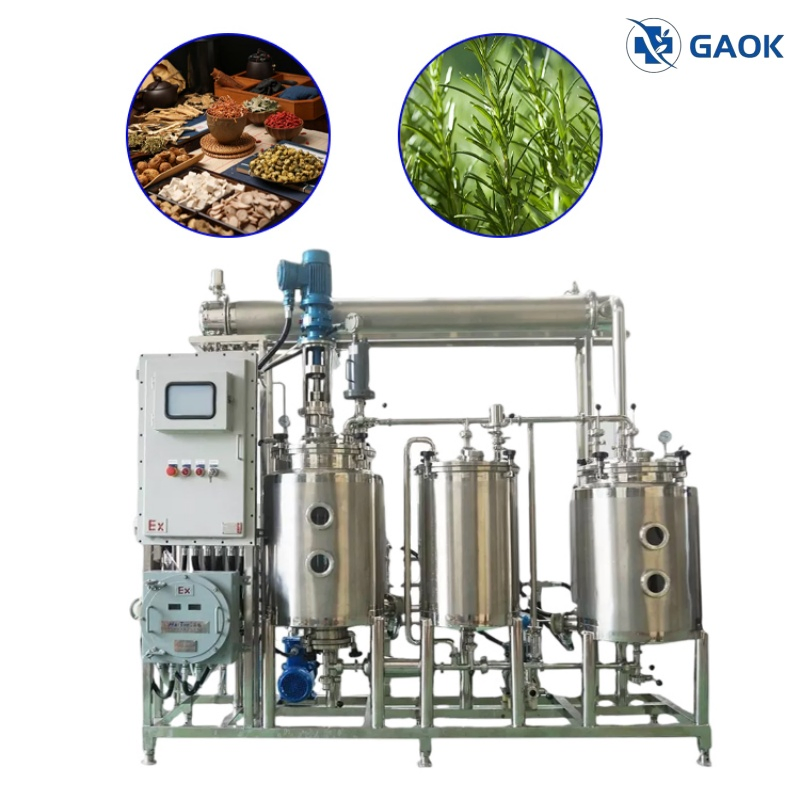

Affordable Ultrasonic Extraction Line for Herbal Seed Tinctures

1 / 5

Affordable Ultrasonic Extraction Line for Herbal Seed Tinctures

Customization:	Available
Application:	Cosmetic Industry, Essential Oil Industry, Herbal Industry, Nutraceutical Industry, Pharmaceutical Industry
Capacity:	10-50L

Send Inquiry

Product Description

Basic Information

Model NO.1L-1000L

CertificationCE, GMP, ISO, UL

ConditionNew

Extraction MethodLiquid-Solid Extraction

Machine TypeUltrasonic Extraction Machine

MaterialStainless Steel

Temperature ControlLow Temperature (25-60℃)

Warranty1 year

⚙

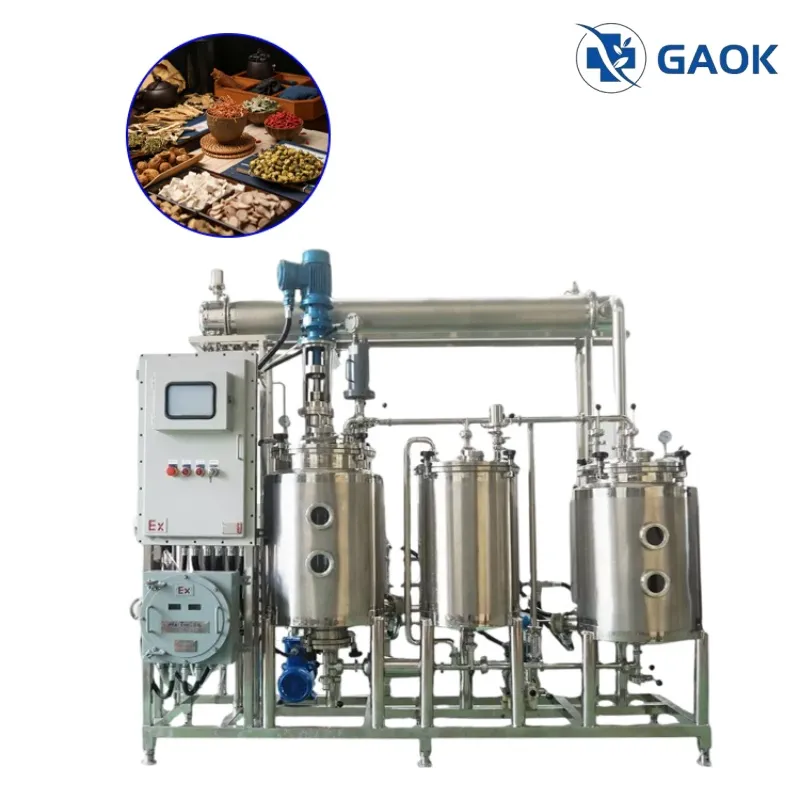

Mushroom Tincture Ultrasonic Extraction Production Line

Mix the powdered mushroom material with an appropriate solvent, such as water, ethanol, or a combination of both. The extraction process can be carried out by various methods, including impregnation, percolation or hot water extraction. This solvent helps dissolve and extract bioactive compounds from mushroom materials.

≋

Process Flow

Raw material pretreatment: Select high-quality mushrooms as extraction raw materials, clean and wash them to remove surface dirt and debris.

Grinding and powdering: Grind mushrooms into fine powder to increase surface area and facilitate compound extraction.

Ultrasonic extraction: Turn on the ultrasonic generation system and carry out extraction according to pre-set parameters (power, time, solid-liquid ratio).

Extraction solution treatment: Separate liquid from residue and filter to obtain a pure extract.

Concentration: Use evaporation or vacuum distillation to increase the concentration of compounds.

Purification: Adopt precipitation, chromatography, or membrane filtration for higher purity.

Drying: Use spray drying, freeze-drying, or vacuum drying to remove remaining moisture for storage.

📋

Technical Specifications

Model	GK-500	GK-1200	GK-2000	GK-3000	GK-4000	GK-6000
Volume (L)	600	1200	2300	3200	4300	6300
Design Pressure (Mpa)	0.09 (Tank) / 0.3 (Jacket)
Heating area(m2)	1.7	3	4.7	6.3	8	12
Motor Power(KW)	2.2	3.0	4.0	5.5	5.5	7.5
Stirring speed(r/min)	36

📐

Drawings & After Sales

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs to meet specific project requirements.
